DESCRIPTION

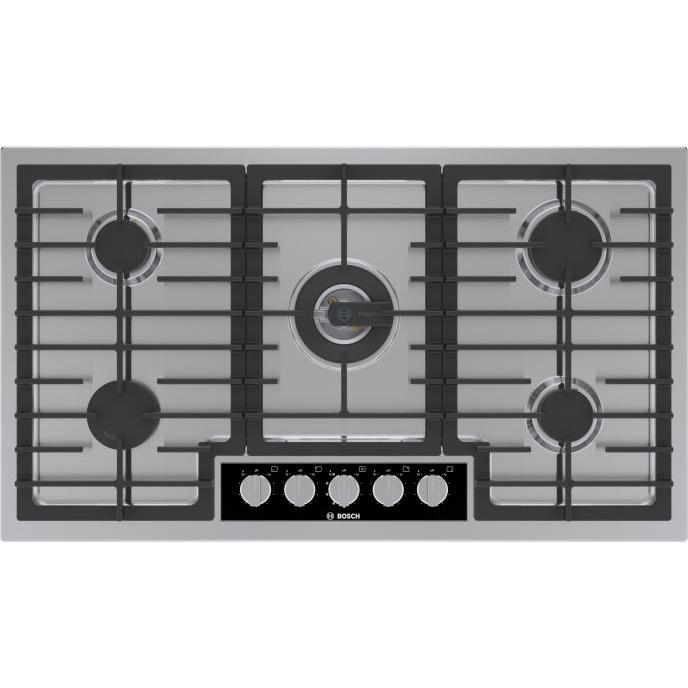

×This Bosch Benchmark® 36-inch built-in gas cooktop features 5 sealed burners, sword knobs, and 1 cast iron pan support.
SPECIFICATIONS
×
Specifications
General
Series Name
Benchmark®
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Power of 1st burner: 3400
• Power of 3rd burner: 6000
• Power of 5th burner: 3000
• Power of 3rd burner: 6000
• Power of 5th burner: 3000
Burners
Sealed
Surface Features
Stainless steel
Features
Additional Information
• Type of control: Front, sword knobs
• Knob material: Full metal
• Gas type: Natural gas 15 mbar (USA)
• Alternative gas type: Liquid gas 27,5 mbar (USA)
• Location of gas connection: Bottom, Rear, Right
• LP gas connection rating: 43750
• Natural gas connection rating: 43750
• Number of double grates: 2
• Number of single grates: 1
• Power on indicator: Yes
• Type of safety device for gas: Electromagnetic for each burner
• Ignition system: Yes
• Residual heat indicator: Separate
• Safety device: Thermo-electric
• Knob material: Full metal
• Gas type: Natural gas 15 mbar (USA)
• Alternative gas type: Liquid gas 27,5 mbar (USA)
• Location of gas connection: Bottom, Rear, Right
• LP gas connection rating: 43750
• Natural gas connection rating: 43750
• Number of double grates: 2
• Number of single grates: 1
• Power on indicator: Yes
• Type of safety device for gas: Electromagnetic for each burner
• Ignition system: Yes
• Residual heat indicator: Separate
• Safety device: Thermo-electric
Electrical Information
Information
• Gas connection rating: 12800 W
• Current: 15 A
• Volts: 120 V
• Frequency: 60 Hz
• Plug type: 120V-3 prong
• Current: 15 A
• Volts: 120 V
• Frequency: 60 Hz
• Plug type: 120V-3 prong
Accessories
Included
• 1 x nozzle set for liquid gas
• 1 x cast iron pan support
• 1 x cast iron pan support
Optional
• Wok ring: HEZ298102
• Griddle plate: HEZ9GR58UC
• Griddle plate: HEZ9GR58UC
Dimensions
Class Width
36"
Width
37 inch(es) / 93.98 cm
Height
3.81 inch(es) / 9.68 cm
Depth
21.25 inch(es) / 53.98 cm
Additional Dimensions
• Power cord length: 40" (101.6 cm)
• Minimum height for installation: 486 mm
• Maximum height for installation: 486 mm
• Minimum width for installation: 887 mm
• Maximum width for installation: 887 mm
• Depth for installation: 97 mm
• Minimum distance from the counter front: 1 7/8"
• Minimum distance from rear wall: 3"
• Required cutout size (HxWxD): 3 13/16" x 34 15/16" x 19 1/8"
• Minimum height for installation: 486 mm
• Maximum height for installation: 486 mm
• Minimum width for installation: 887 mm
• Maximum width for installation: 887 mm
• Depth for installation: 97 mm
• Minimum distance from the counter front: 1 7/8"
• Minimum distance from rear wall: 3"
• Required cutout size (HxWxD): 3 13/16" x 34 15/16" x 19 1/8"
Shipping Dimensions
Width
43.13 inch(es) / 109.55 cm
Height
8.38 inch(es) / 21.29 cm
Depth
24.75 inch(es) / 62.87 cm
UPC
UPC#
825225973041
