DESCRIPTION
×This 30-inch Café slide-in gas range features True European Convection with Precise Air and auto self-clean. The edge-to-edge cooktop with six versatile burners also includes an integrated griddle to easily handle large meals and family favorites. An integrated temperature probe ensures that meats are prepared to the perfect doneness.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
White
Manufacturer Color
Matte White
Appliance Care
• Self-Clean with Steam Clean Option
• Auto Self Clean
• Delay Clean Option
• Auto Self Clean
• Delay Clean Option

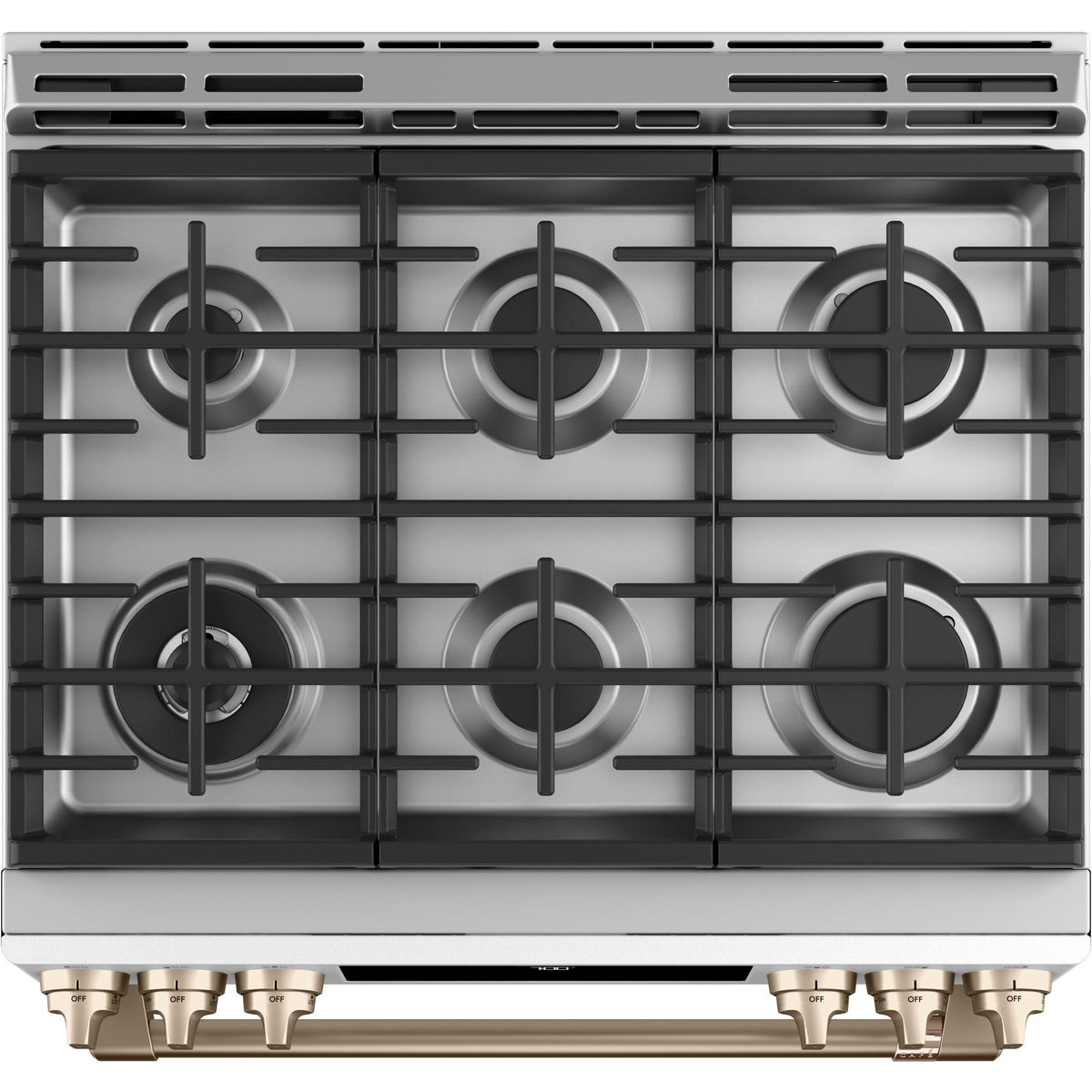

Cooktop
Burners/Elements
6
Burners/Elements Output
• Left Front Burner: 21,000 BTU Tri-Ring Burner
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Front Burner: 9,500 BTU
• Center Rear Burner: 9,500 BTU
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Front Burner: 9,500 BTU
• Center Rear Burner: 9,500 BTU
Burners
Sealed
Other

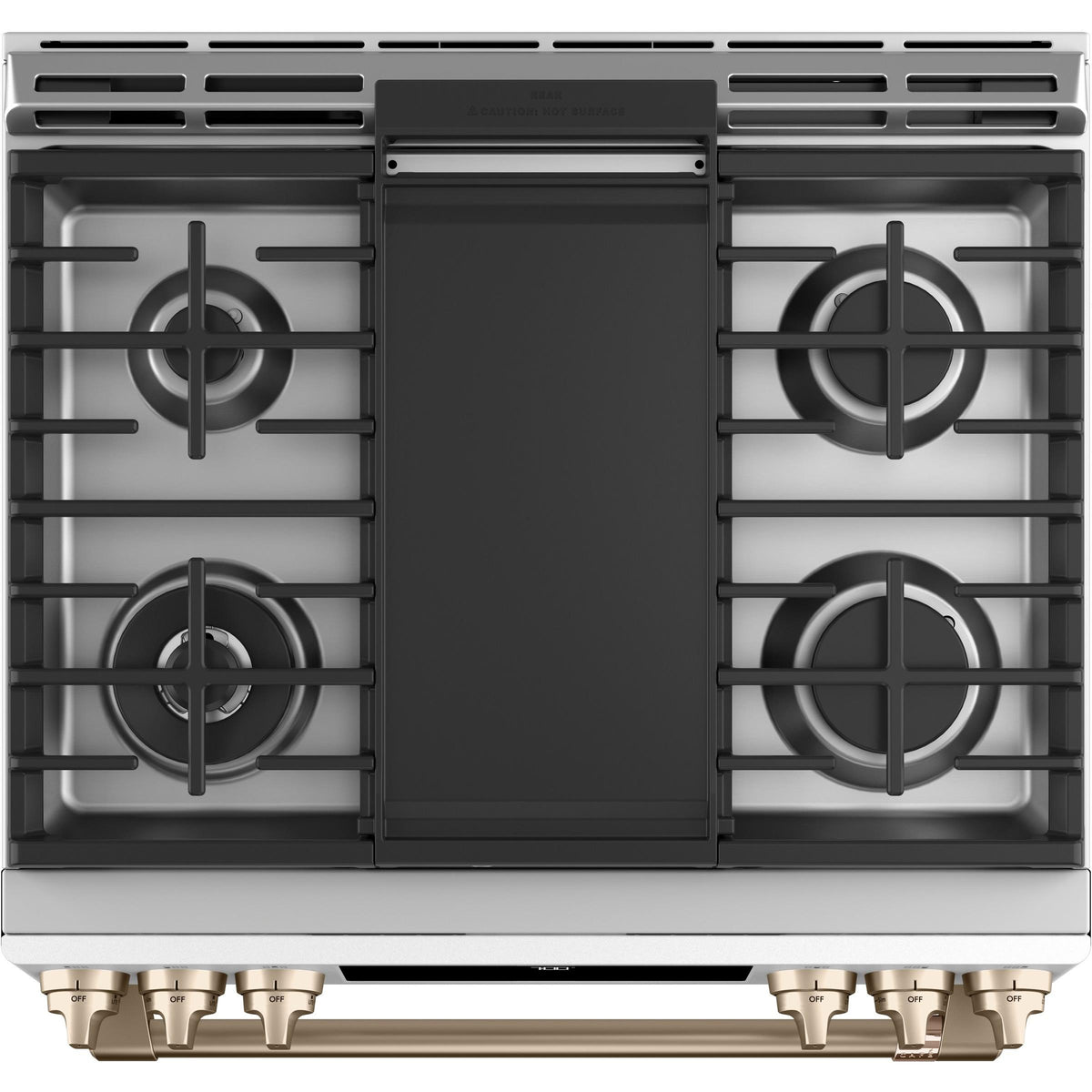

Griddle
Oven
Capacity (cu. ft.)
5.6 cu.ft.
Number of Ovens
Single
Programs
• Convection 1200W
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 16.5 Broiler
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 16.5 Broiler
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Deep Recessed; Porcelain-Enamel; Gray Cookop
• Dishwasher Safe Knobs
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Digipad Numeric Entry
• Electronic Clock and Timer

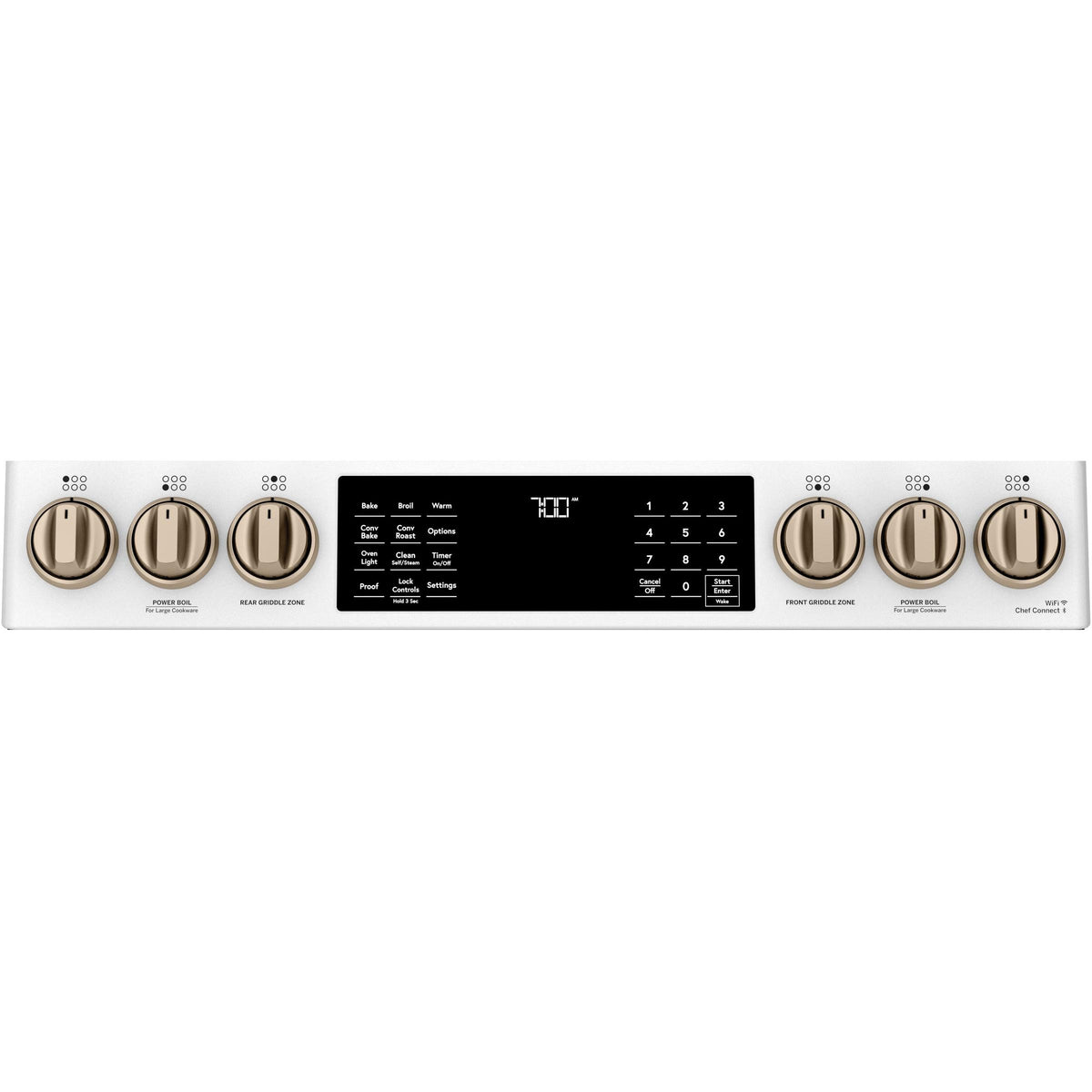

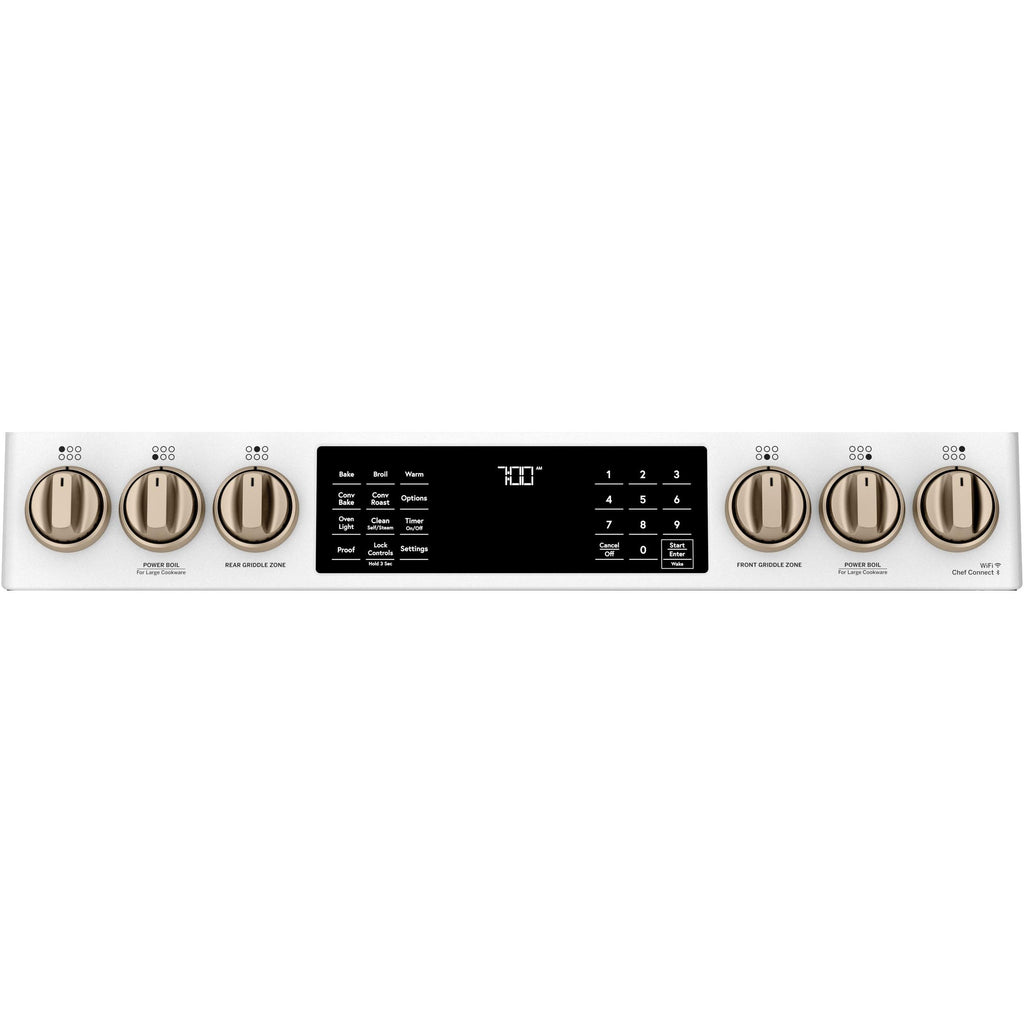

• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• 3 Self-Clean Oven Racks
• 6 Rack Positions
• Dishwasher Safe Knobs
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• 3 Self-Clean Oven Racks
• 6 Rack Positions
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• LP Conversion Kit
• Griddle
• Griddle
Optional
• Grill: JXCGRILL1
• Trim Kit: JXFILLR1DD
• Trim Kit: JXFILLR1DD
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
223.99 lb(s) / 101.6 kg
Additional Dimensions
• Depth with Door Open: 47-1/2"
• Height to Top of Rear Vent Trim: 37-3/8 in
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8 in
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
Shipping Dimensions
Weight
244.01 lb(s) / 110.68 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
84691846703
