DESCRIPTION

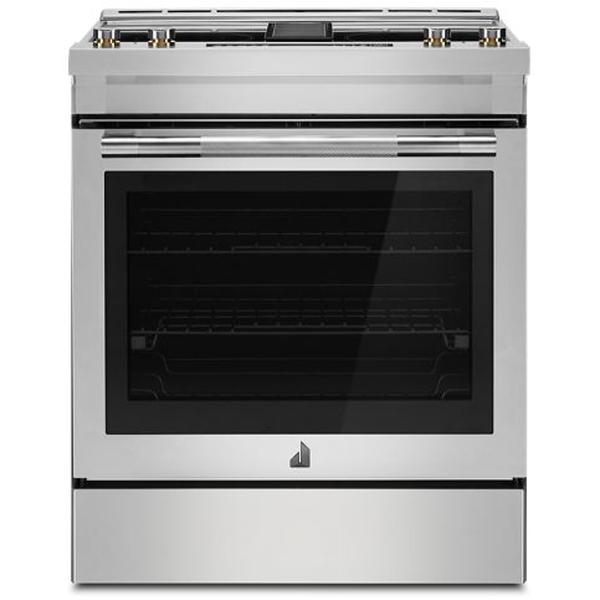

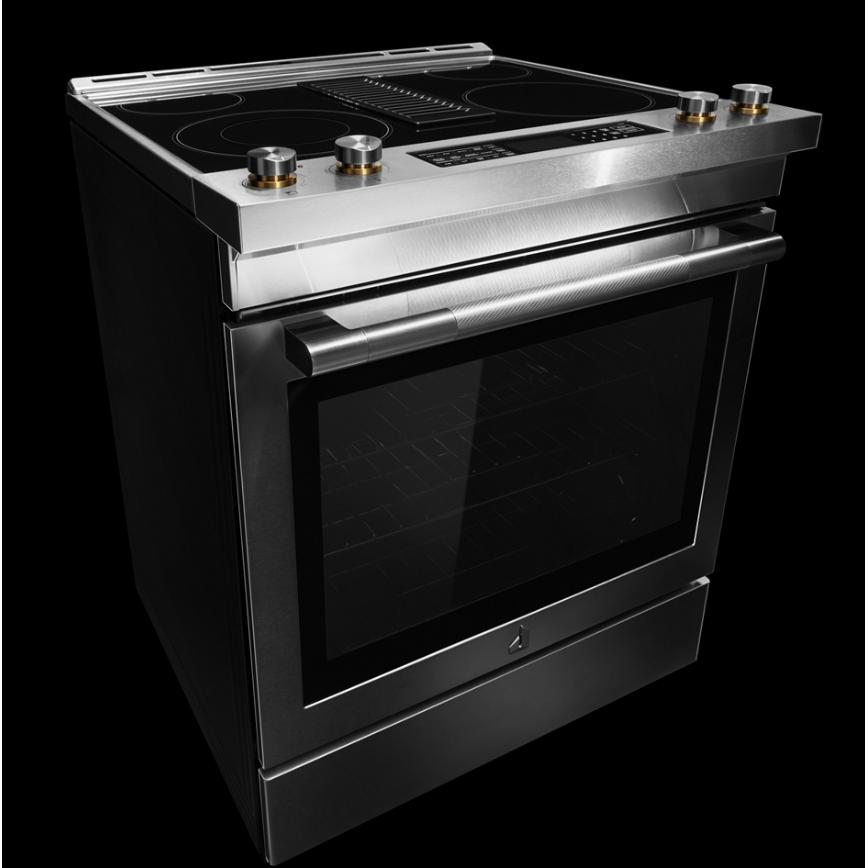

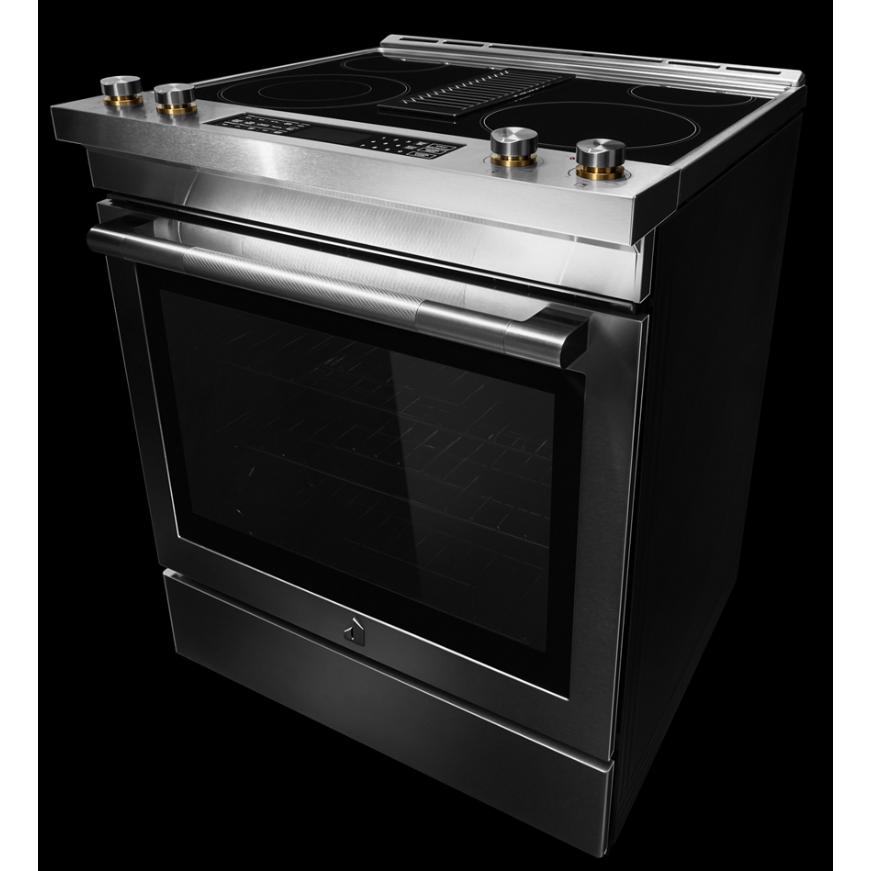

×Revel in the power and flexibility of a JennAir® electric downdraft slide-in range. Cook multiple dishes on multiple racks in the 6.2 cu. ft. oven cavity, sauté and simmer on the Dual-Choice™ Element, then utilize a downdraft ventilation system to help draw odors away.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
Rise
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean: AquaLift® Self-Cleaning Technology
Cooktop
Burners/Elements
4
Burners/Elements Output
• Right Rear: 1200 W
• Right Front: 3200 W
• Left Front: 3000 W
• Left Rear: 1300 W
• Right Front: 3200 W
• Left Front: 3000 W
• Left Rear: 1300 W
Burner/Element Size
• Right Rear: 6 in.
• Right Front: 10 in.
• Left Front: 12 in./6 in.
• Left Rear: 6 in.
• Right Front: 10 in.
• Left Front: 12 in./6 in.
• Left Rear: 6 in.
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4
Number of Ovens
Single
Programs
• Air Fry
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
Features
Technologies
Automatic Convection Conversion Temperature Adjust
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes

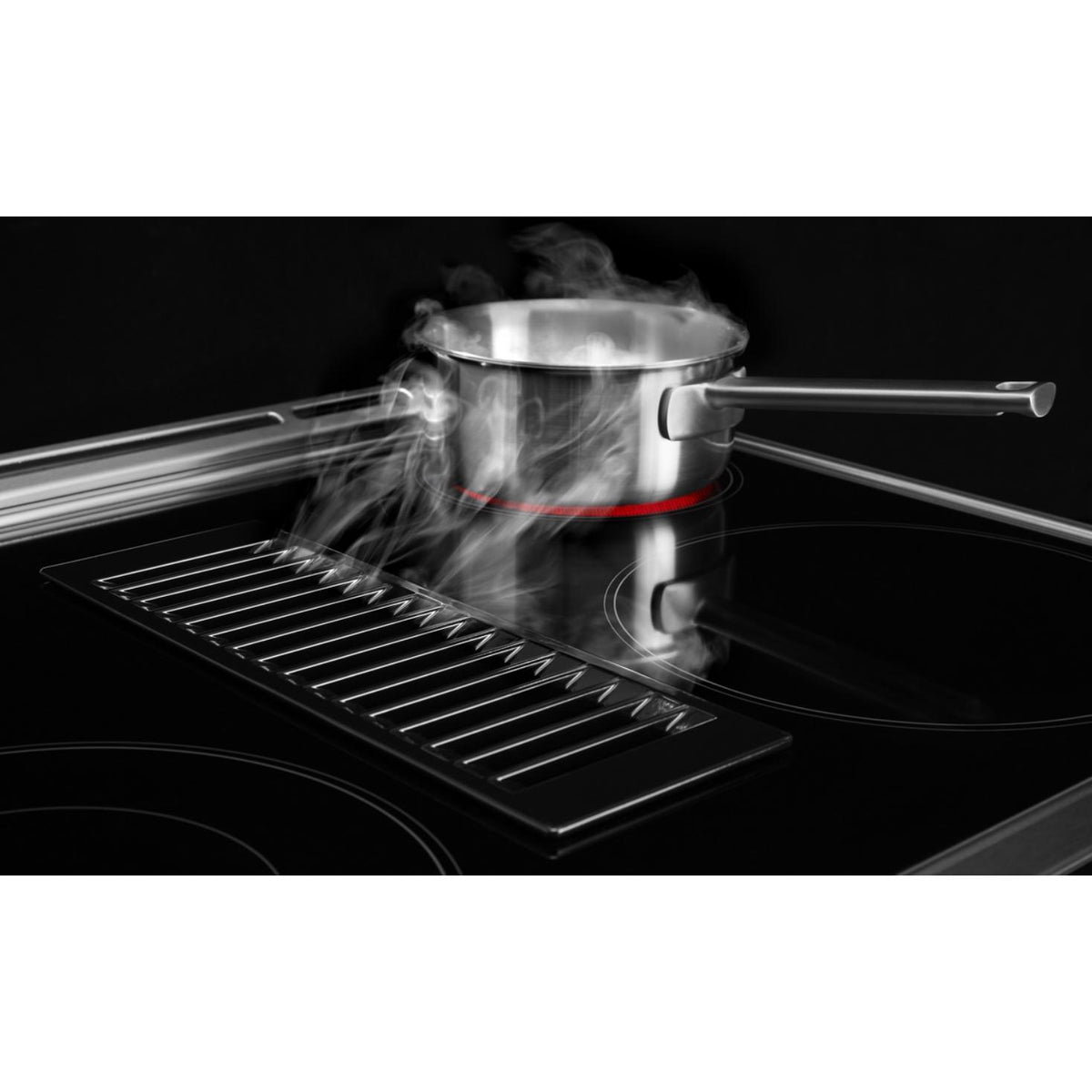

Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Hidden Bake Element
• Convection Functions: Air Fry, Bake, Broil

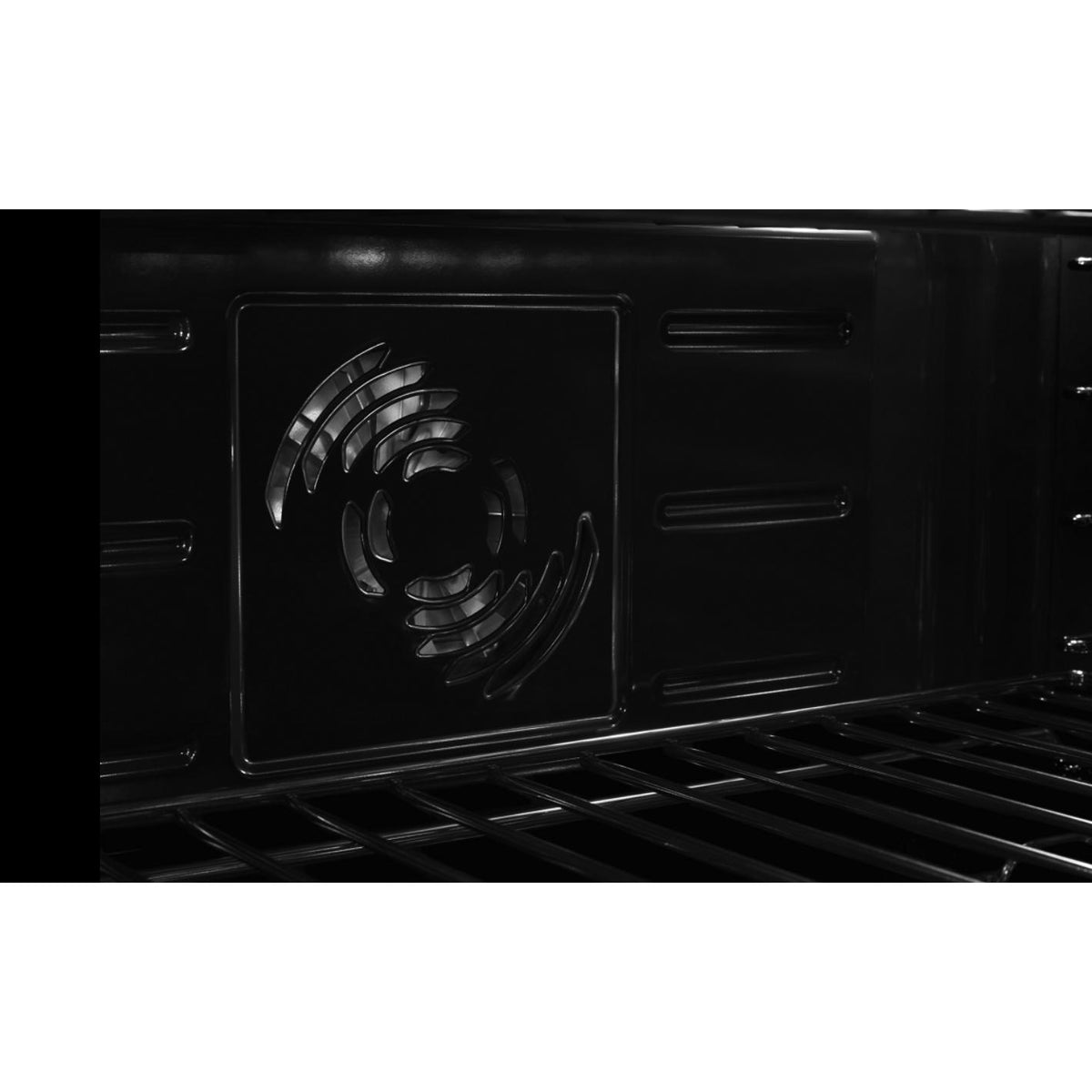

• Convection Element Type: Fan
• Convection Element Power: 3200 W
• Broiler Location: Top of Oven
• Broiler Element Power: 4000 W
• Bake Element Power: 3600 W

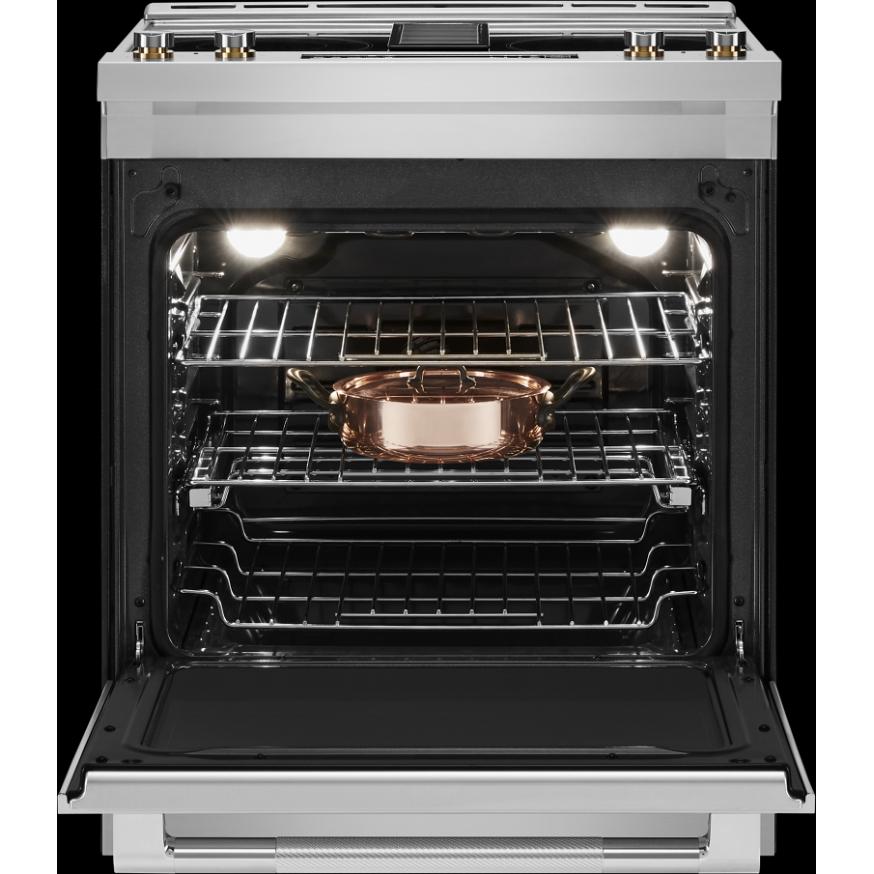

• Number of Rack Guides: 7
• Number of Oven Racks: 3
• Number of Oven Lights: 2
• Interior Color: Black

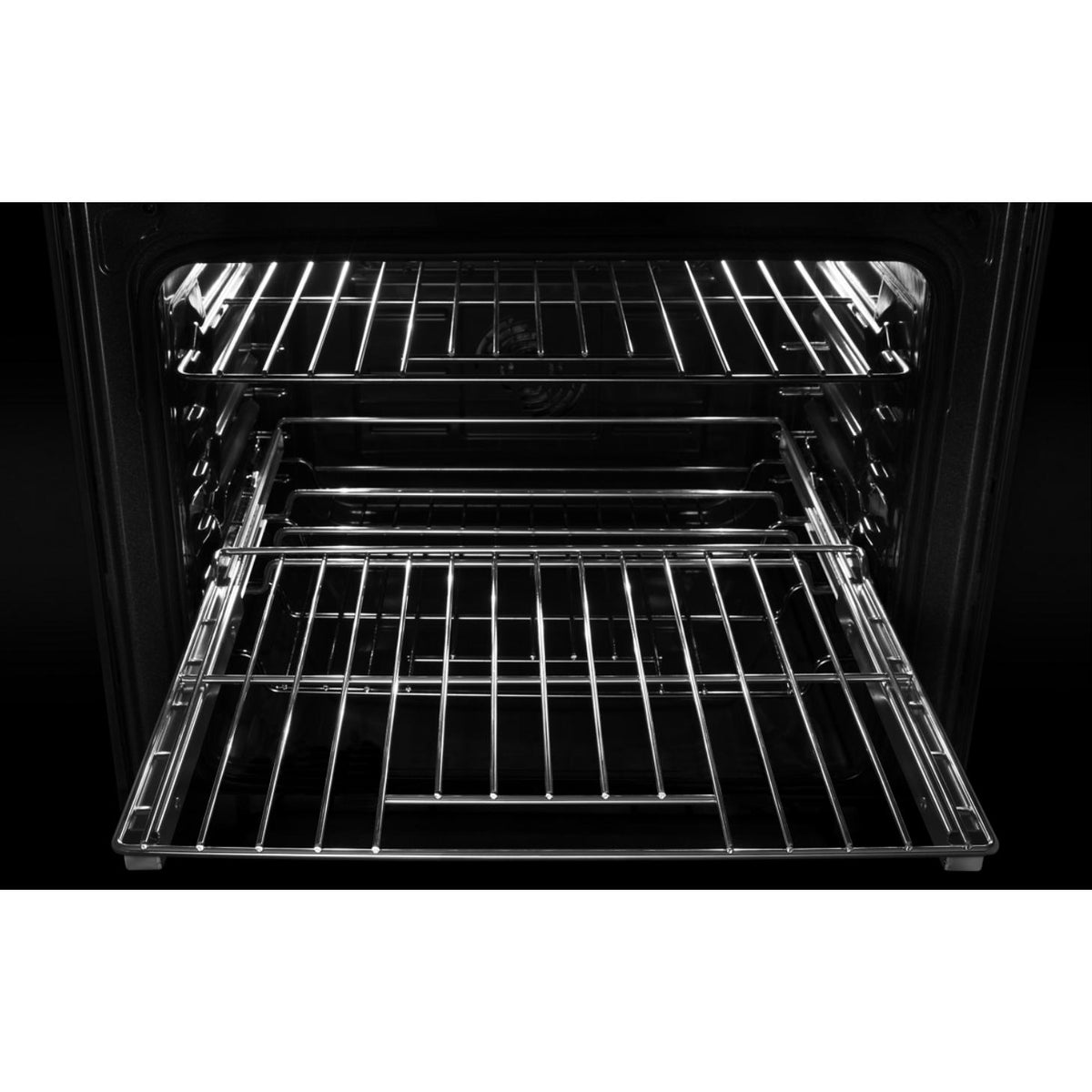

• Oven Rack Type: Gliding Roll-Out
• Oven Rack Type: Heavy Duty
• Oven Rack Type: Max Capacity
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Oven Control Type: Tap Touch
• Oven Control Location: Front Control
• Oven Control Knob Type: Metal
• Oven Control Knob Color: Stainless Steel
• Cooktop Surface Material: Glass
• Cooktop Surface Color: Black
• Cooktop Element Style: Ceran
• Cooktop Configuration: All Burners
• Cooktop Control Type: Knobs
• Cooktop Control Location: Front
• Oven Door: Metal & Glass
• Handle Material: Metal

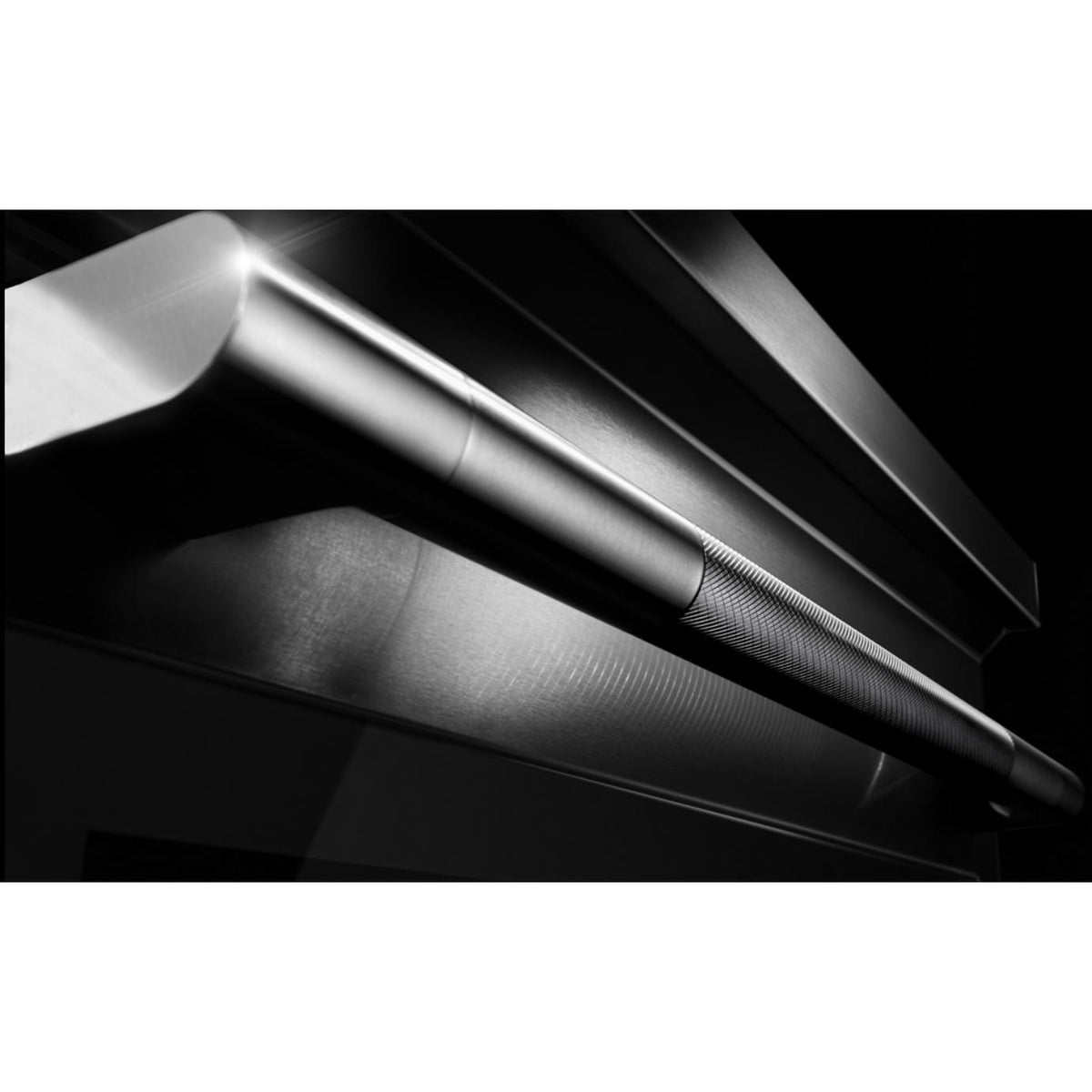

• Handle Type: Reach Through Handle
• Handle Color: Stainless Steel
• Country of Origin: USA
• Convection Functions: Air Fry, Bake, Broil
• Convection Element Type: Fan
• Convection Element Power: 3200 W
• Broiler Location: Top of Oven
• Broiler Element Power: 4000 W
• Bake Element Power: 3600 W
• Number of Rack Guides: 7
• Number of Oven Racks: 3
• Number of Oven Lights: 2
• Interior Color: Black
• Oven Rack Type: Gliding Roll-Out
• Oven Rack Type: Heavy Duty
• Oven Rack Type: Max Capacity
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Oven Control Type: Tap Touch
• Oven Control Location: Front Control
• Oven Control Knob Type: Metal
• Oven Control Knob Color: Stainless Steel
• Cooktop Surface Material: Glass
• Cooktop Surface Color: Black
• Cooktop Element Style: Ceran
• Cooktop Configuration: All Burners
• Cooktop Control Type: Knobs
• Cooktop Control Location: Front
• Oven Door: Metal & Glass
• Handle Material: Metal
• Handle Type: Reach Through Handle
• Handle Color: Stainless Steel
• Country of Origin: USA
Electrical Information
Information
• Volts: 240 V
• Amps: 40 A
• Annual Energy Usage: 636 kWh
• Amps: 40 A
• Annual Energy Usage: 636 kWh
Certifications and Approvals
ADA Compliant
Yes
Information
UL
Accessories
Included
• Power Cord
• W10675026
• W10675028
• W10748976
• W10675026
• W10675028
• W10748976
Optional
• W10115773
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10748976
• W10800530
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10748976
• W10800530
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.81 inch(es) / 70.64 cm
Depth (Including Handles)
28.63 inch(es) / 72.71 cm
Weight
214 lb(s) / 97.07 kg
Additional Dimensions
• Cutout Width: 30.0 in.
• Oven Interior Width: 24.25 in.
• Oven Interior Depth: 20.75 in.
• Oven Interior Width: 24.25 in.
• Oven Interior Depth: 20.75 in.
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
234 lb(s) / 106.14 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049643670
