DESCRIPTION

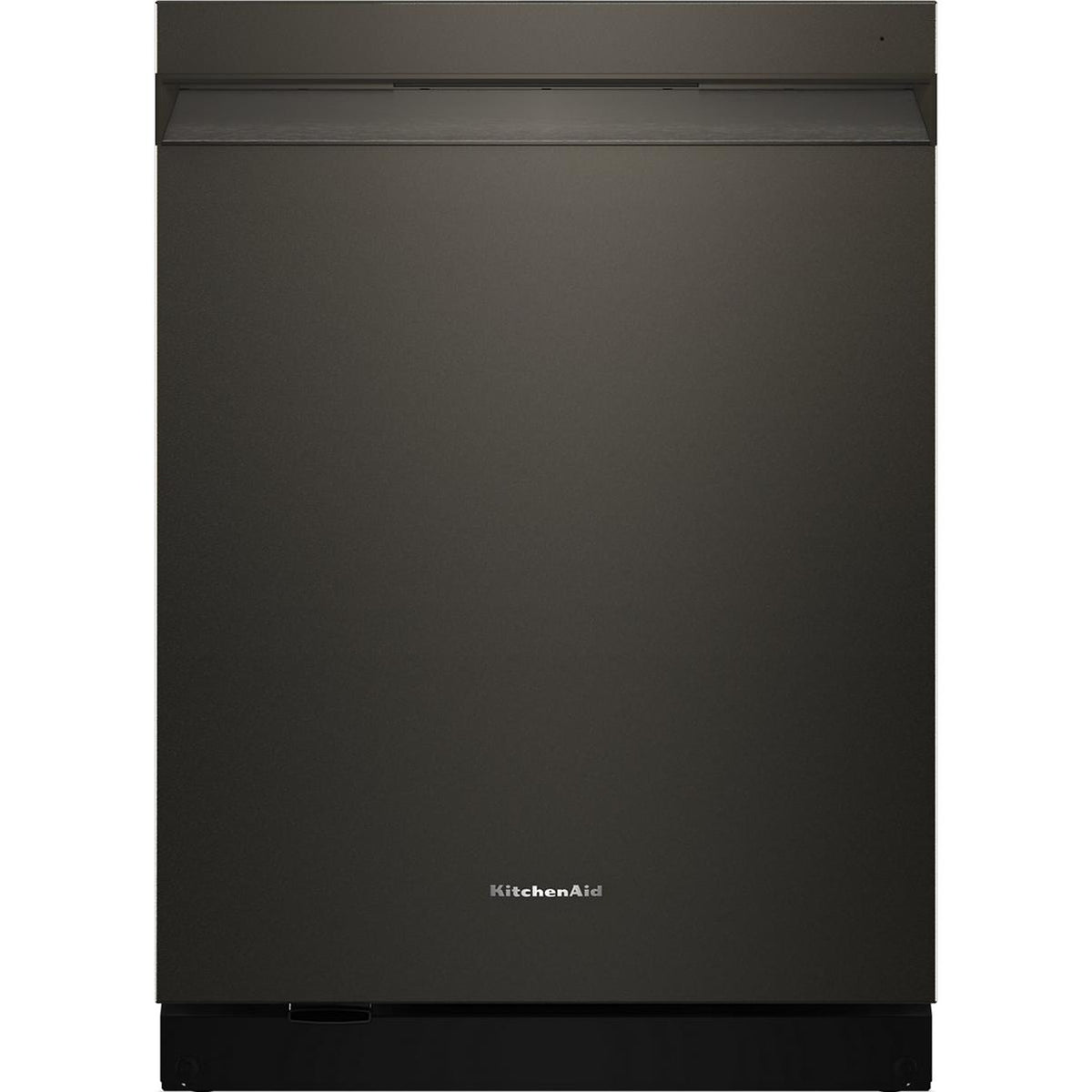

×Say hello to the only way to dish. This top control dishwasher with a pocket handle has 50+ Total Wash Jets across 5 wash arms that offer targeted cleaning across the entire 7.25 cu.ft. MaxTub Largest dishwasher Tub*. 360° Max Jets™ Third Rack uses 360° wash jets to clean glasses, mugs and bowls. Advanced ProDry™ System serves up KitchenAid brand's driest dry. True Self-Cleaning Filtration eliminates manual filter cleaning by continuously circulating clean water during wash and rinse cycles.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Built-In
Color
Black
Manufacturer Color
Black Ore
Tub Material
Stainless Steel
Silence Rating
44 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Express Wash
• Normal
• ProWash™
• Rinse Only
• Tough
• Normal
• ProWash™
• Rinse Only
• Tough
Options
• 1-24 Hour Delay
• Door Open Dry
• High Temp
• ProDry™
• ProDry™ Max
• Sani Rinse®
• Top 2 Racks
• Door Open Dry
• High Temp
• ProDry™
• ProDry™ Max
• Sani Rinse®
• Top 2 Racks
Features
Technologies
• Advanced ProDry™ System
• 360° Max Jets™ Third Rack
• ProWash™ Cycle
• ProDry™ Max Option
• SatinGlide® Rails in Third and Middle Racks
• Automatic Door Open Dry System
• 360° Max Jets™ Third Rack
• ProWash™ Cycle
• ProDry™ Max Option
• SatinGlide® Rails in Third and Middle Racks
• Automatic Door Open Dry System
Delay Start
Yes
3rd Rack System
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Fold Down Tines
• Cushion Tip Tines
• Extras Sliding Tines; Stainless Steel Wash Arm
• Glides Wheels
• Style Extended
• Rack Material Nylon
• Tub Style Built-in Tall Tub 24in.
• Wash System: Self Cleaning Filtration
• Wash System Type: Maintenance Free Microfilter
• Number Of Washarms: 5
• Interior Light
• Number Of Racks: 3
• Drying System Type: Heating Element with Fan Assist and Door Open Dry
• Toe Panel Color Black
• Handle Color Stainless Steel
• Handle Material Metal
• Handle Type Pocket Handle
• Detergent and Rinse Aid
• Number Of Wash Levels: 7
• End Of Cycle Signal
• Automatic Temperature Controls
• Status Light: Multi-Color
• Cushion Tip Tines
• Extras Sliding Tines; Stainless Steel Wash Arm
• Glides Wheels
• Style Extended
• Rack Material Nylon
• Tub Style Built-in Tall Tub 24in.
• Wash System: Self Cleaning Filtration
• Wash System Type: Maintenance Free Microfilter
• Number Of Washarms: 5
• Interior Light
• Number Of Racks: 3
• Drying System Type: Heating Element with Fan Assist and Door Open Dry
• Toe Panel Color Black
• Handle Color Stainless Steel
• Handle Material Metal
• Handle Type Pocket Handle
• Detergent and Rinse Aid
• Number Of Wash Levels: 7
• End Of Cycle Signal
• Automatic Temperature Controls
• Status Light: Multi-Color
Electrical Information
Information
• 110 V
• 15 A
• 15 A
Certifications and Approvals
NSF® Certified
Yes
UL Listed
Yes
Information
Tier I
Accessories
Included
Drain Hose
Optional
• W10252111
• W10278635RP
• W10288149B
• W11774814
• W11774815
• W11774816
• W11774817
• W10278635RP
• W10288149B
• W11774814
• W11774815
• W11774816
• W11774817
Dimensions
Class Width
24"
Width
23.94 inch(es) / 60.81 cm
Height (Min.)
33.63 inch(es) / 85.42 cm
Depth (Without Handle)
24.5 inch(es) / 62.23 cm
Weight
89 lb(s) / 40.37 kg
Additional Dimensions
• Maximum Height: 34.63"
• Minimum Height: 33.63"
• Depth With Door Open 90 Degree: 51.0"
• Depth Closed Excluding Handles: 24.5"
• Depth Closed Including Handles: 24.5"
• Minimum Height: 33.63"
• Depth With Door Open 90 Degree: 51.0"
• Depth Closed Excluding Handles: 24.5"
• Depth Closed Including Handles: 24.5"
Shipping Dimensions
Width
24.25 inch(es) / 61.6 cm
Height
35.04 inch(es) / 89 cm
Depth
24.25 inch(es) / 61.6 cm
Weight
100 lb(s) / 45.36 kg
UPC
UPC#
883049704951
