DESCRIPTION

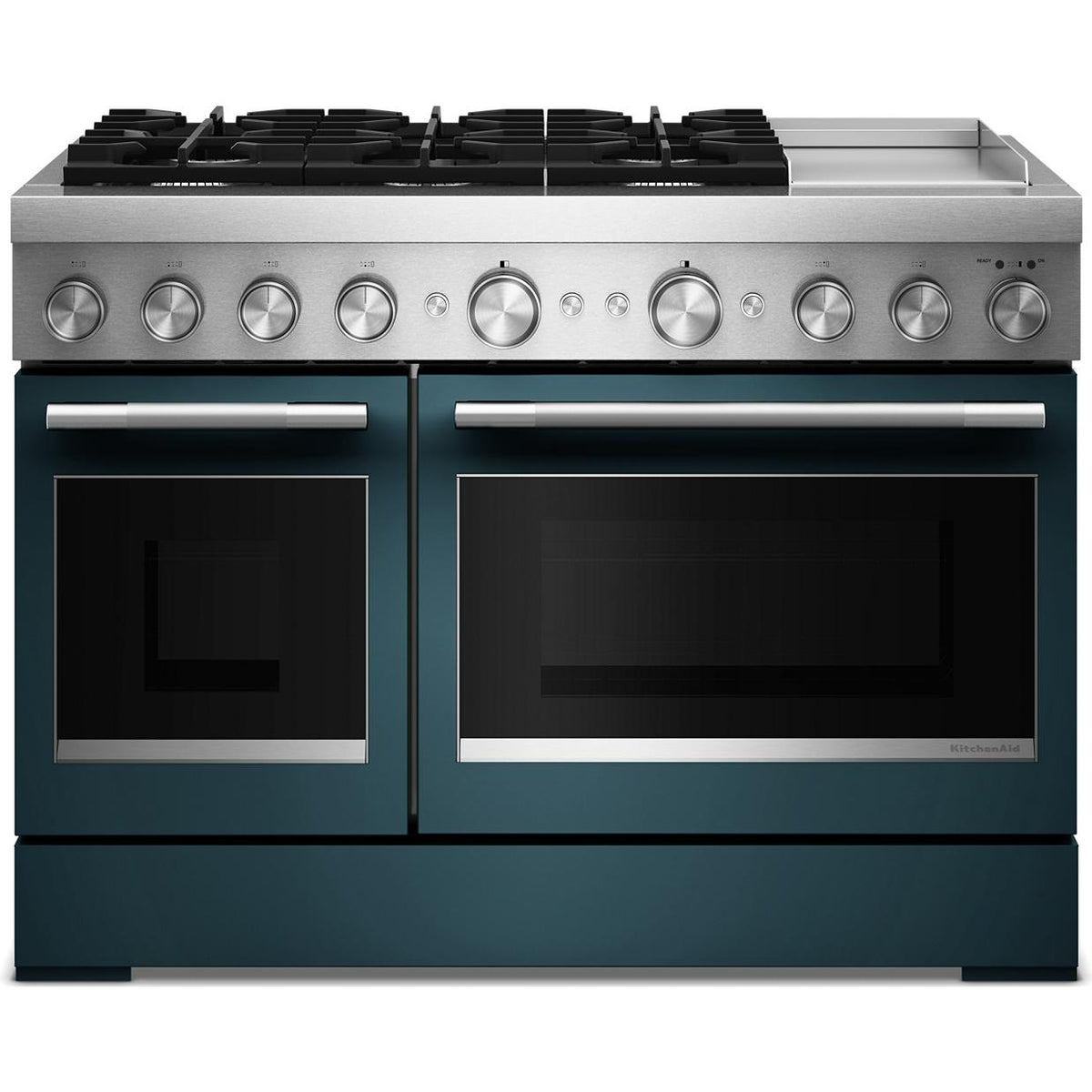

×Satisfy your craving to create with a 48-inch KitchenAid® Commercial-Style Range with Chrome Electric Griddle. This dual fuel range combines an electric double oven with a 6-burner gas cooktop. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer power and precision to successfully sear, simmer, stir-fry and sauté. Even-Heat™ True Convection gives consistent baking and roasting, plus air fry mode that yields crispy, golden results.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Blue
Manufacturer Color
Agave
Cooktop
Burners/Elements
6
Burners/Elements Output
• Center Front Burner Power: 15,000 BTU
• Center Rear Burner Power: 5000 BTU
• Left Front Burner Power: 20,000 BTU
• Left Rear Burner Power: 15,000 BTU
• Right Front Burner Power: 18,000 BTU
• Right Rear Burner Power: 15,000 BTU
• Center Rear Burner Power: 5000 BTU
• Left Front Burner Power: 20,000 BTU
• Left Rear Burner Power: 15,000 BTU
• Right Front Burner Power: 18,000 BTU
• Right Rear Burner Power: 15,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
6.3 cu. ft.
Number of Ovens
Double
Programs
• Air Fry
• Bake
• Broil
• Clean
• Convect Bake
• Convect Broil
• Convect Roast
• Keep Warm
• Proofing
• Sabbath Mode
• Bake
• Broil
• Clean
• Convect Bake
• Convect Broil
• Convect Roast
• Keep Warm
• Proofing
• Sabbath Mode
Features
Technologies
• Flame-Sensing™ Re-Ignition
• True Convection Technology
• Air Fry Technology
• True Convection Technology
• Air Fry Technology
Air Fry
Yes
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Bake Element Power: 3000W
• Broiler Element Power: 5500W
• Broiler Location: Top of Oven
• Convection Element Power: 1600 W, 1600 W, 1600 W, 1600 W
• Convection Element Type: True-Bow Tie
• Door Removable
• Hidden Bake Element: Yes
• Number of Oven Lights: 3
• Number of Oven Racks: 2 Left – 2 Right
• Number of Rack Guides: 5 Left – 5 Right
• Oven Cleaning Type: Self-Cleaning
• Oven Cooking System: True Convection
• Oven Light Switch Location: Top of Oven
• Oven Light Type: Halogen
• Oven Rack Guide Type: Molded
• Oven Rack Type: Gliding Roll-Out, Standard
• Auto Re-Ignition
• Cooktop Control Knob Type: Metal
• Cooktop Control Location: Front
• Cooktop Control Type: Knobs
• Cooktop Surface Material: Porcelain Coated Steel
• Griddle Included: Integrated
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Broiler Element Power: 5500W
• Broiler Location: Top of Oven
• Convection Element Power: 1600 W, 1600 W, 1600 W, 1600 W
• Convection Element Type: True-Bow Tie
• Door Removable
• Hidden Bake Element: Yes
• Number of Oven Lights: 3
• Number of Oven Racks: 2 Left – 2 Right
• Number of Rack Guides: 5 Left – 5 Right
• Oven Cleaning Type: Self-Cleaning
• Oven Cooking System: True Convection
• Oven Light Switch Location: Top of Oven
• Oven Light Type: Halogen
• Oven Rack Guide Type: Molded
• Oven Rack Type: Gliding Roll-Out, Standard
• Auto Re-Ignition
• Cooktop Control Knob Type: Metal
• Cooktop Control Location: Front
• Cooktop Control Type: Knobs
• Cooktop Surface Material: Porcelain Coated Steel
• Griddle Included: Integrated
• Heating Element On Indicator Light
• Hot Surface Indicator Light
Certifications and Approvals
Sabbath/Star-K
Yes
Information
UL, CUL
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.60 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.75 inch(es) / 70.48 cm
Depth (Including Handles)
30.25 inch(es) / 76.84 cm
Weight
470.4 lb(s) / 213.37 kg
Additional Dimensions
• Cutout Depth: 60.96 cm, 24 in
• Cutout Height: 91.44 cm, 36 in
• Cutout Width: 121.92 cm, 48 in
• Oven Interior Depth: 41.40 cm, 16-3/10 in
• Oven Interior Height: 36.32 cm, 14-3/10 in
• Oven Interior Width: 60.96 cm, 24 in
• Cutout Height: 91.44 cm, 36 in
• Cutout Width: 121.92 cm, 48 in
• Oven Interior Depth: 41.40 cm, 16-3/10 in
• Oven Interior Height: 36.32 cm, 14-3/10 in
• Oven Interior Width: 60.96 cm, 24 in
Shipping Dimensions
Weight
555.39 lb(s) / 251.92 kg
Warranty
Warranty
1 Year Parts and Labor
