DESCRIPTION

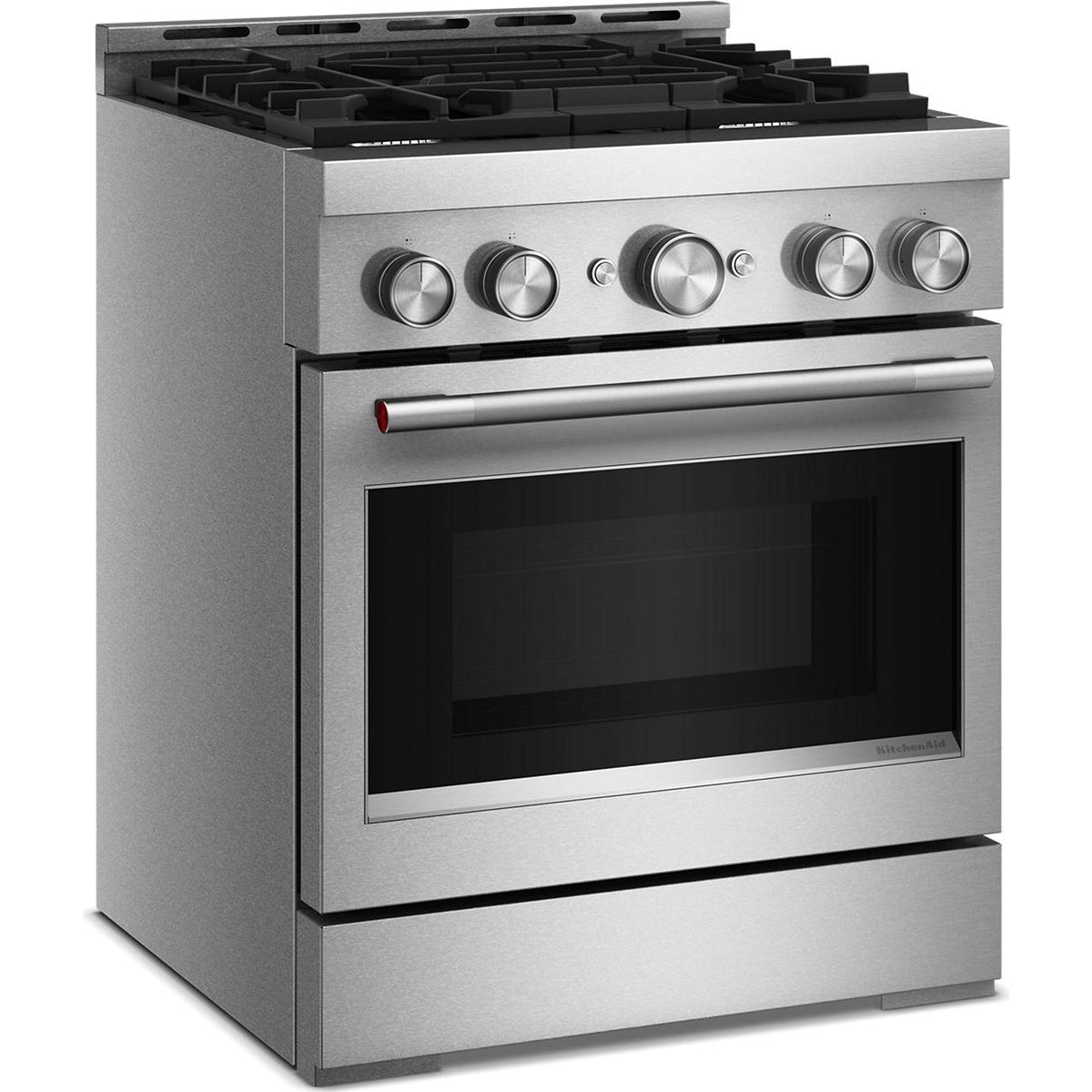

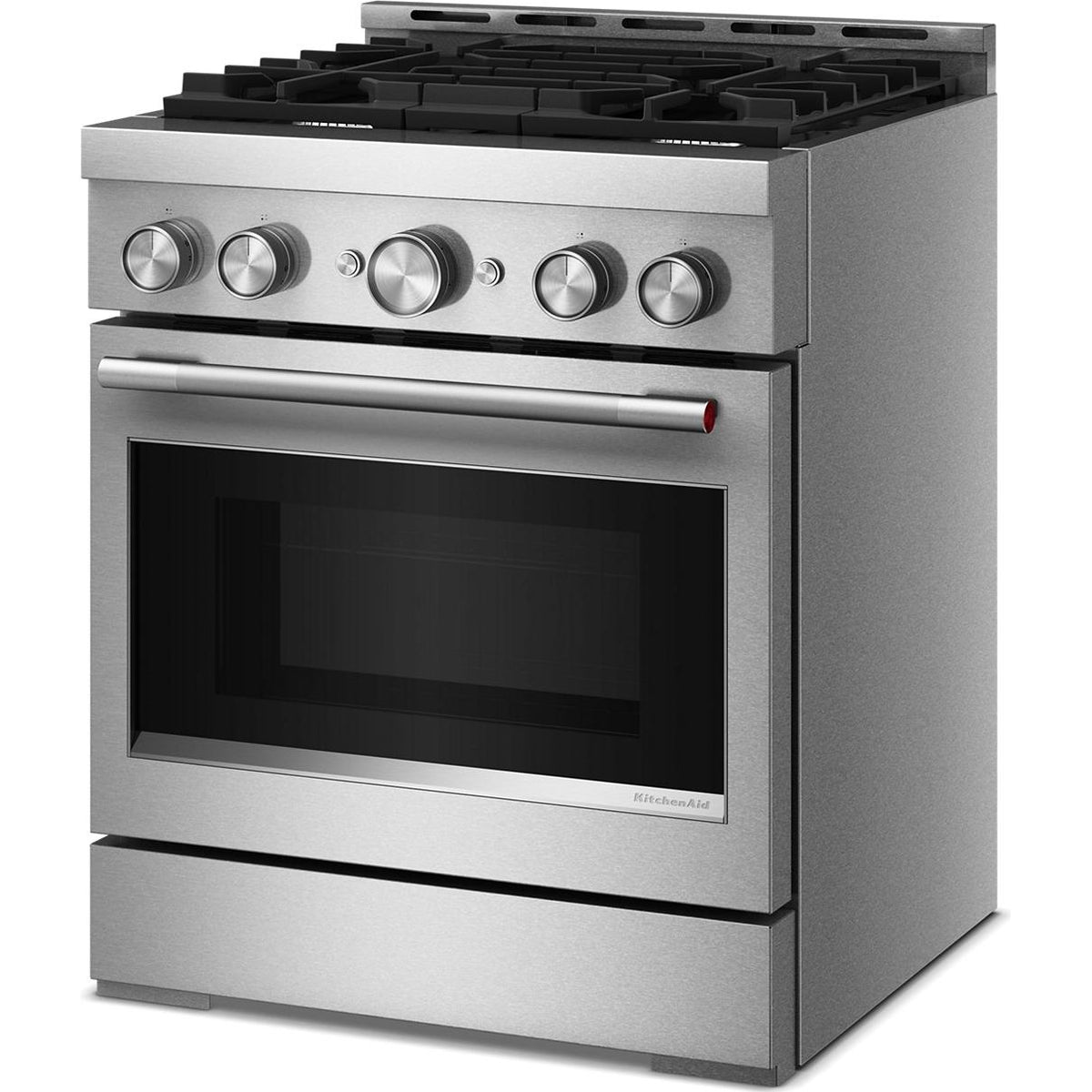

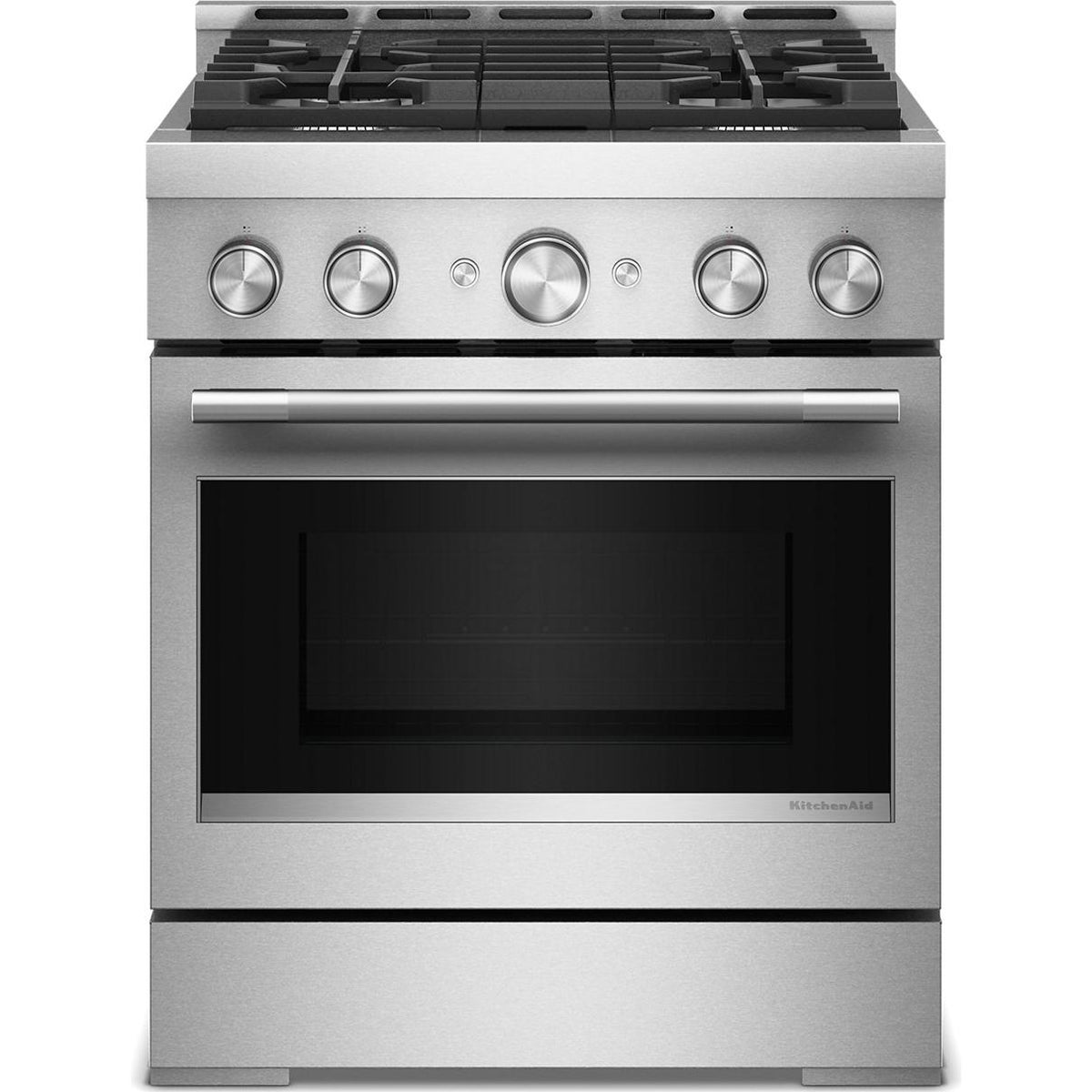

×Empower your creativity with a 30-inch KitchenAid® Commercial-Style Range with 4 burners. This gas range features two versatile 20,000 BTU Ultra Power™ Dual-Flame Burners with the power and precision needed to successfully sear, simmer, stir-fry and sauté. Even-Heat™ True Convection gives consistent baking and roasting, plus air fry mode that yields crispy, golden results.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Cleaning
Cooktop

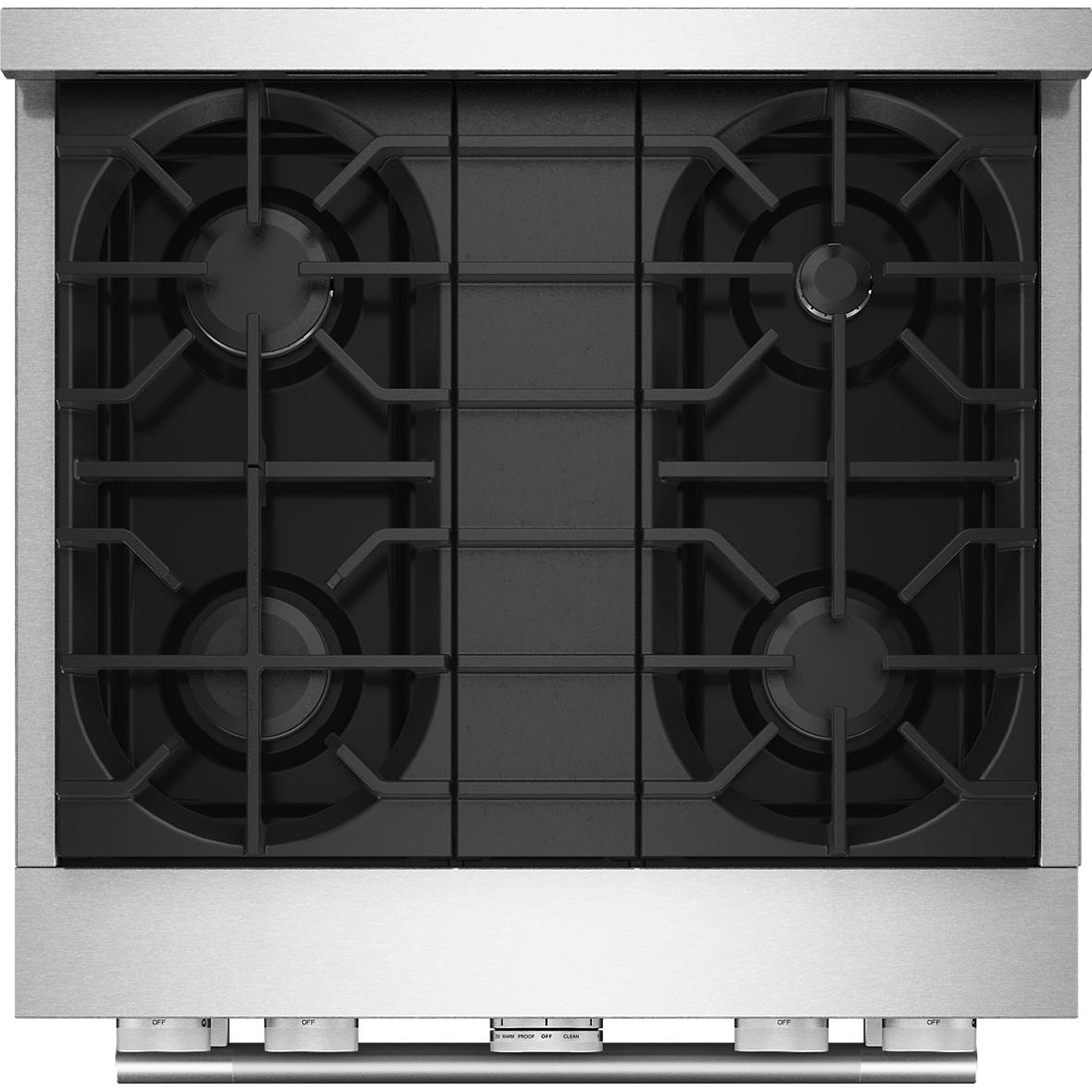

Burners/Elements
4
Burners/Elements Output
• Left Front Burner Power: 20,000 BTU
• Left Rear Burner Power: 15,000 BTU
• Right Front Burner Power: 20,000 BTU
• Right Rear Burner Power: 5,000 BTU
• Left Rear Burner Power: 15,000 BTU
• Right Front Burner Power: 20,000 BTU
• Right Rear Burner Power: 5,000 BTU
Burners
Sealed

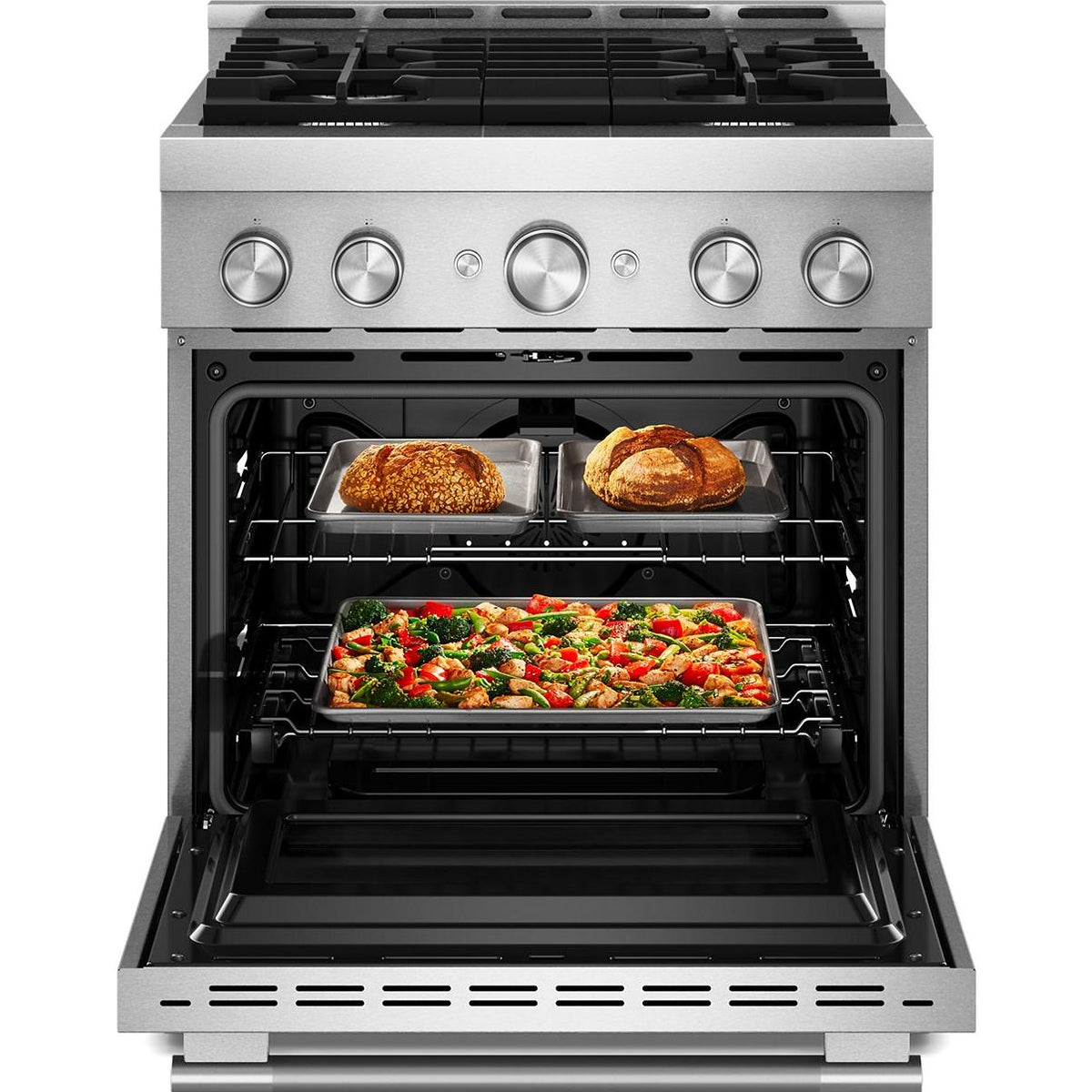

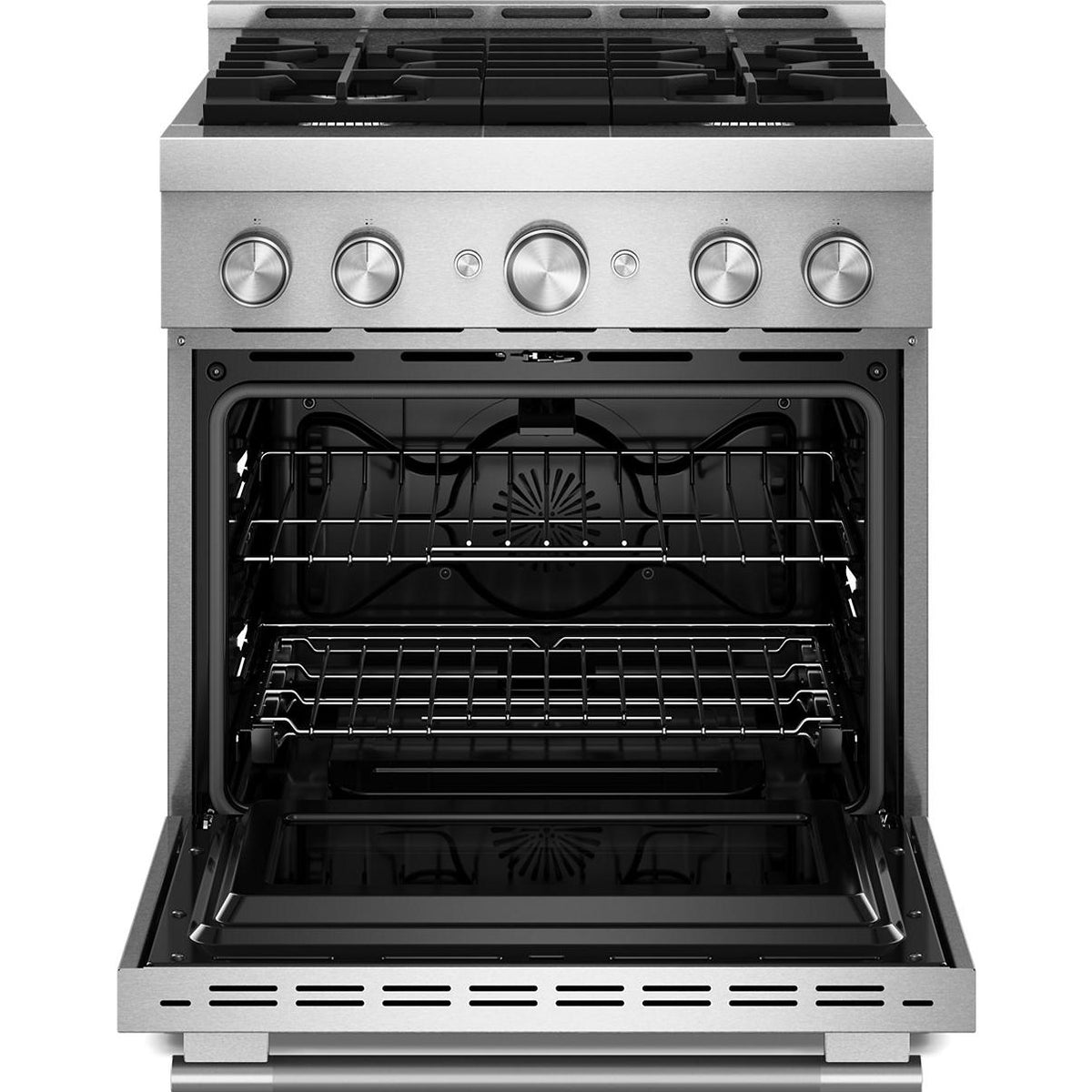

Oven
Capacity (cu. ft.)
4.1 cu. ft.
Number of Ovens
Single
Programs
• Air Fry
• Bake
• Broil
• Clean
• Convect Bake
• Convect Broil
• Convect Roast
• Keep Warm Setting
• Proofing
• Sabbath Mode
• Bake
• Broil
• Clean
• Convect Bake
• Convect Broil
• Convect Roast
• Keep Warm Setting
• Proofing
• Sabbath Mode
Features
Technologies
• Even-Heat™ True Convection
• Air Fry Technology
• True-Bow Tie Convection Element
• Flame-Sensing™ Re-ignition
• Automatic Convection Conversion Temperature Adjust
• Auto Re-Ignition
• Air Fry Technology
• True-Bow Tie Convection Element
• Flame-Sensing™ Re-ignition
• Automatic Convection Conversion Temperature Adjust
• Auto Re-Ignition
Air Fry
Yes
Convection
Yes
Digital Temperature Display
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Power Outage Compatible
• Hidden Bake Element
• Oven Cooking System - True Convection
• Oven Control Type - Knobs
• Oven Control Location - Front Control
• Oven Control Knob Type - Metal
• Broiler Location - Top of Oven
• Broiler Element Power - 11,000 BTU
• Bake Element Power - 17,000 BTU
• Convection Element Power - 1,600 W
• 3 Halogen Oven Lights
• 2 Oven Racks
• Gliding Roll-Out and Standard Oven Rack
• Porcelain-Coated Cast Grates
• Dishwasher-Safe Grates
• Matte Finish Grates
• Natural Gas Convertible
• LP Convertible
• Country Of Origin: USA
• Heating Element On Indicator Light
• Power Outage Compatible
• Hidden Bake Element
• Oven Cooking System - True Convection
• Oven Control Type - Knobs
• Oven Control Location - Front Control
• Oven Control Knob Type - Metal
• Broiler Location - Top of Oven
• Broiler Element Power - 11,000 BTU
• Bake Element Power - 17,000 BTU
• Convection Element Power - 1,600 W
• 3 Halogen Oven Lights
• 2 Oven Racks
• Gliding Roll-Out and Standard Oven Rack
• Porcelain-Coated Cast Grates
• Dishwasher-Safe Grates
• Matte Finish Grates
• Natural Gas Convertible
• LP Convertible
• Country Of Origin: USA
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• CUL
• UL
• UL
Accessories
Included
Power Cord Included
Optional
• W11774748
• W11774749
• W11774750
• W11774751
• W11774749
• W11774750
• W11774751
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.75 inch(es) / 70.49 cm
Depth (Including Handles)
30.25 inch(es) / 76.84 cm
Weight
298.99 lb(s) / 135.62 kg
Additional Dimensions
• Overall Depth - 28.5 "
• Depth With Door Open 90 Degree - 46.5 "
• Cutout Depth - 24.0 "
• Cutout Height - 36.0 "
• Cutout Width - 30.0 "
• Oven Interior Width - 24.0 "
• Oven Interior Depth - 16.3 "
• Depth With Door Open 90 Degree - 46.5 "
• Cutout Depth - 24.0 "
• Cutout Height - 36.0 "
• Cutout Width - 30.0 "
• Oven Interior Width - 24.0 "
• Oven Interior Depth - 16.3 "
Shipping Dimensions
Width
35.8 inch(es) / 90.93 cm
Height
47.3 inch(es) / 120.14 cm
Depth
35.5 inch(es) / 90.17 cm
Weight
362.4 lb(s) / 164.38 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049920283
