DESCRIPTION
×Serve up something for everyone, even in tight kitchens, with a small gas range. This ADA-compliant stove gives you more flexibility with burners designed to provide low heat for simmering or high heat for searing and boiling. When dinner's done, cut down on cleanup with sealed burners and dishwasher-safe cast-iron grates.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Right Front Element-Burner Power: 12,000 BTU
• Right Rear Element-Burner Power: 9,100 BTU
• Left Front Element-Burner Power: 6,000 BTU
• Left Rear Element-Burner Power: 15,000 BTU
• Right Rear Element-Burner Power: 9,100 BTU
• Left Front Element-Burner Power: 6,000 BTU
• Left Rear Element-Burner Power: 15,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
3.0 cu. ft.
Number of Ovens
Single
Features
Technologies
AccuSimmer® Burner
Convection
No
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Wi-Fi
No
Additional Information
• Electronic ignition
• Cooktop surface material: porcelain coated steel
• Dishwasher safe, continuous grates with hinge: Matte finish

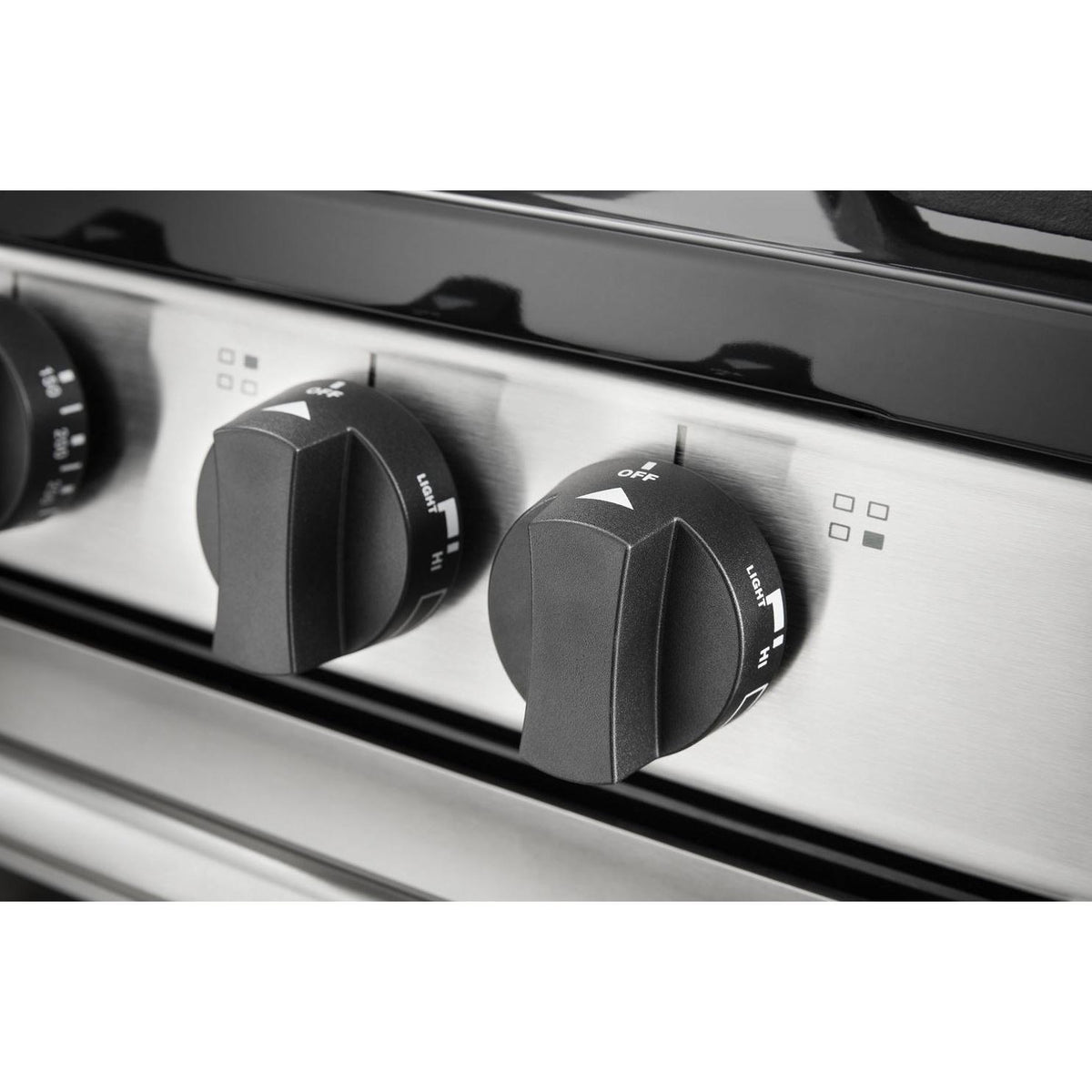

• Knobs control
• Left front burner type: Simmer
• Reach-through handle
• Incandescent oven light
• Number of oven racks: 2
• Number of rack guides: 4
• Cooktop surface material: porcelain coated steel
• Dishwasher safe, continuous grates with hinge: Matte finish
• Knobs control
• Left front burner type: Simmer
• Reach-through handle
• Incandescent oven light
• Number of oven racks: 2
• Number of rack guides: 4
Drawer Features
Broiler
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
LP Conversion kit
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
159.5 lb(s) / 72.35 kg
Additional Dimensions
• Depth with door open 90 degree: 107.95 cm, 42-1/2 in
• Maximum height: 93.34 cm, 36-3/4 in
• Maximum height: 93.34 cm, 36-3/4 in
Shipping Dimensions
Width
26.5 inch(es) / 67.31 cm
Height
43.5 inch(es) / 110.49 cm
Depth
29 inch(es) / 73.66 cm
Weight
177.01 lb(s) / 80.29 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049484402
