DESCRIPTION
×Make the most of your time in the kitchen with the Whirlpool 30 inch gas range, a self cleaning oven featuring high heat burners and No Preheat Mode. This 5.0 cu ft gas oven with Broil helps you add a toasty twist or melty magic to family classics, and features a built-in temperature sensor to help the oven Bake evenly. Plus, boil 20% faster* with two SpeedHeat high btu burners. *Compared to 9.5K burner on the same model.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean

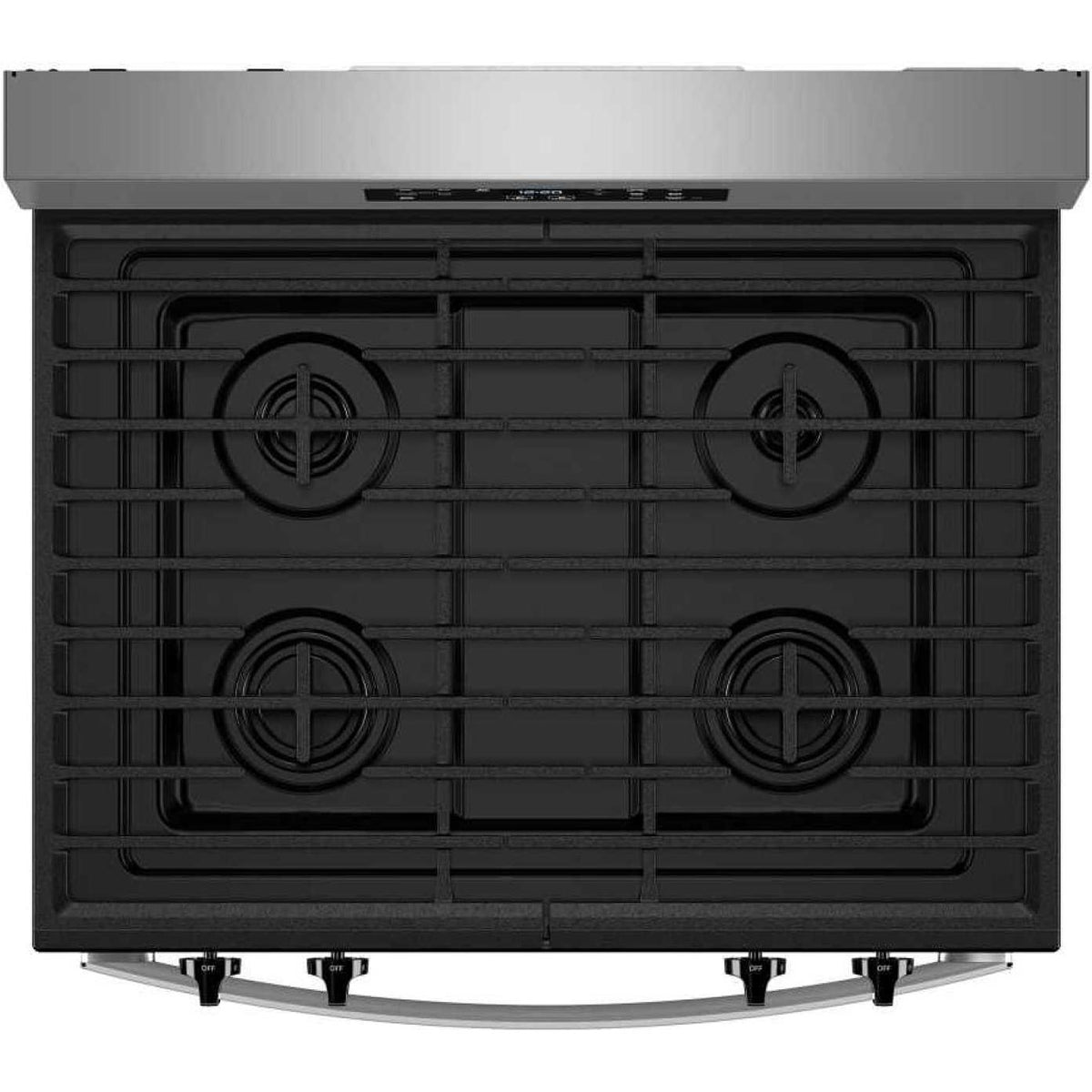

Cooktop
Burners/Elements
4

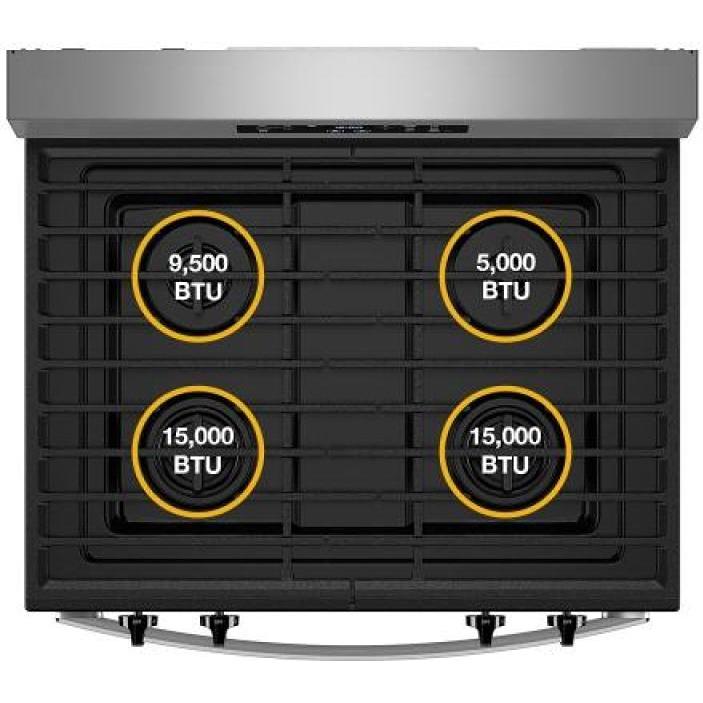

Burners/Elements Output
• Right Rear: 5,000 BTU
• Right Front: 15,000 BTU
• Left Rear: 9,500 BTU
• Left Front: 15,000 BTU
• Right Front: 15,000 BTU
• Left Rear: 9,500 BTU
• Left Front: 15,000 BTU
Burner/Element Size
• Right Rear: 4.0 in.
• Right Front: 4.0 in.
• Left Rear: 4.0 in.
• Left Front: 4.0 in.
• Right Front: 4.0 in.
• Left Rear: 4.0 in.
• Left Front: 4.0 in.

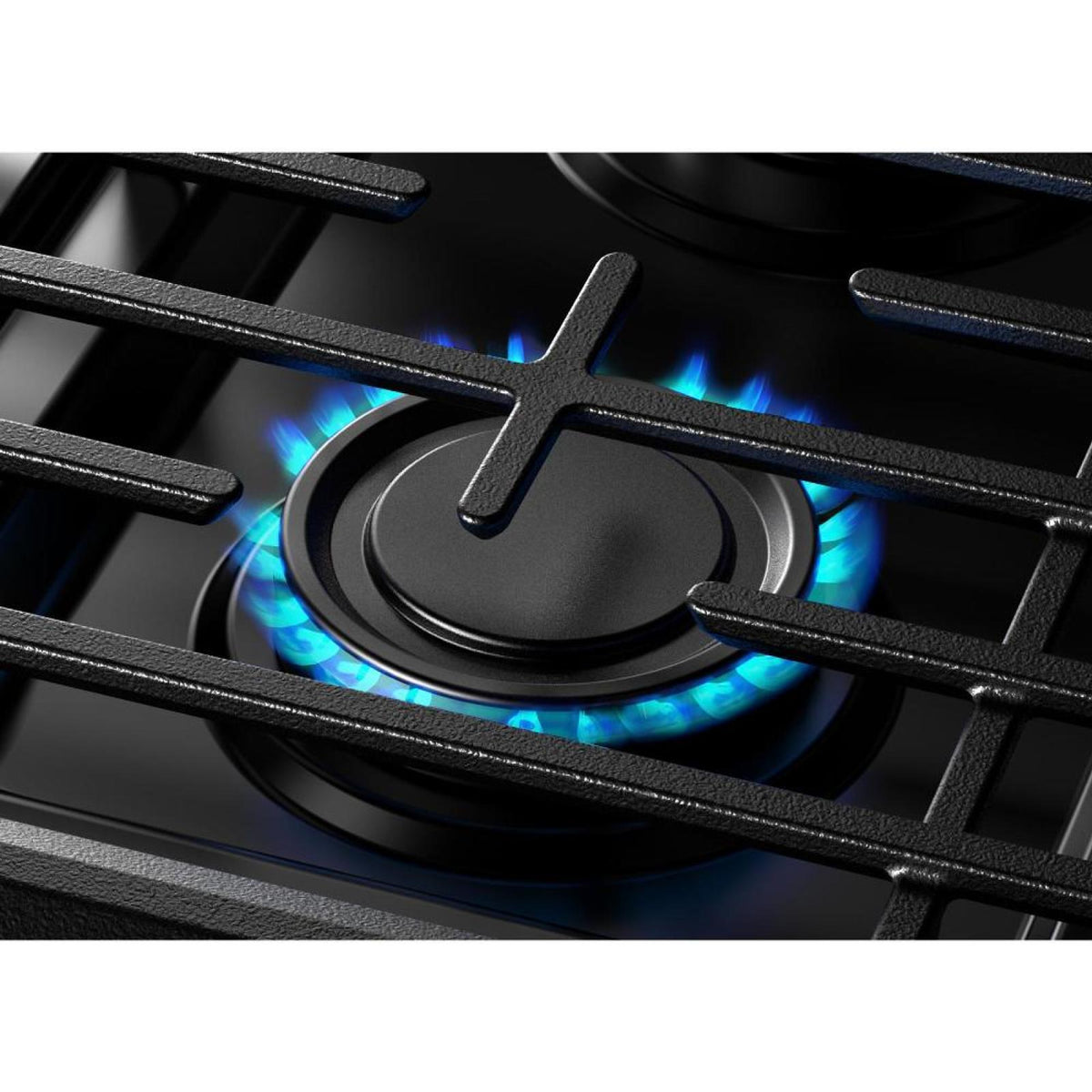

Burners
Sealed

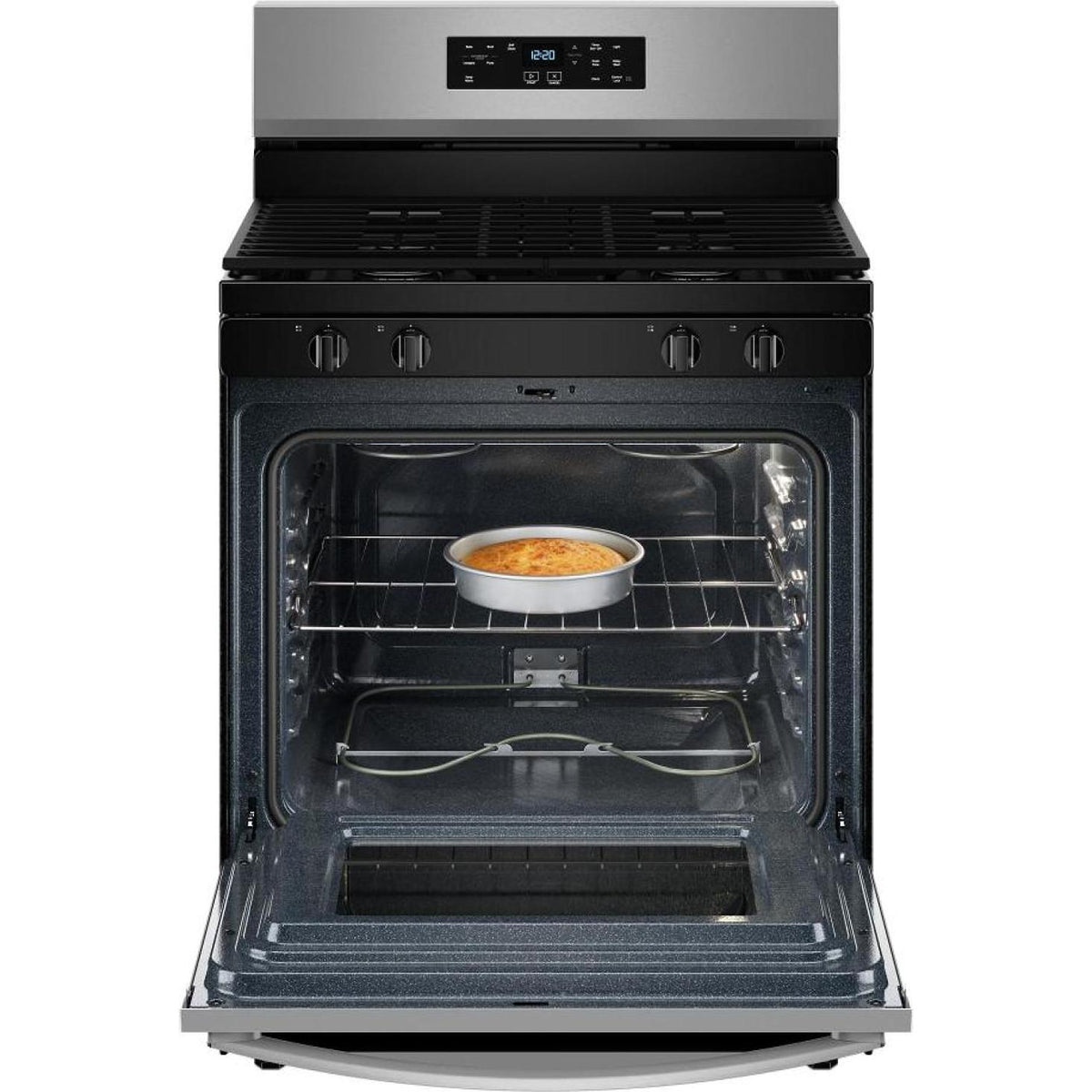

Oven

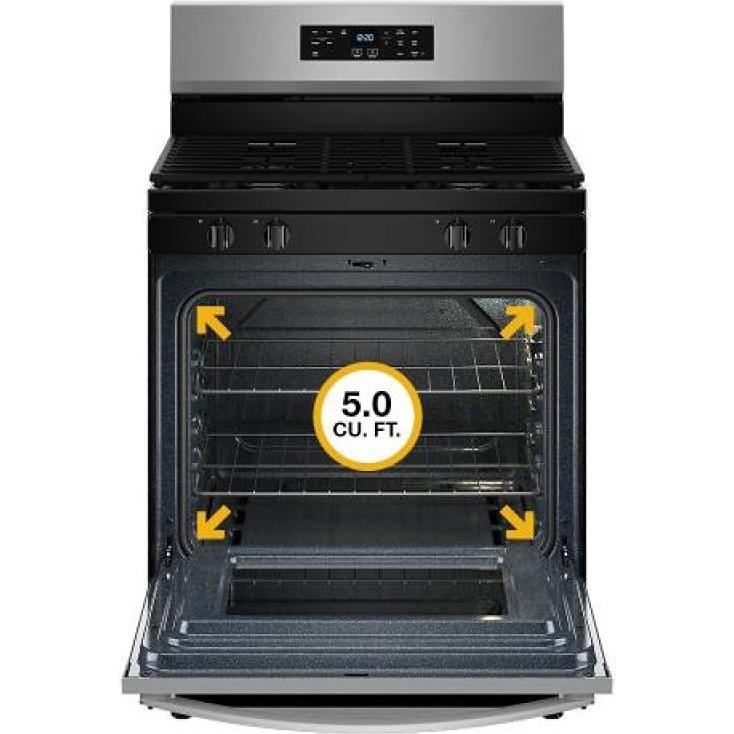

Capacity (cu. ft.)
5.0
Number of Ovens
Single

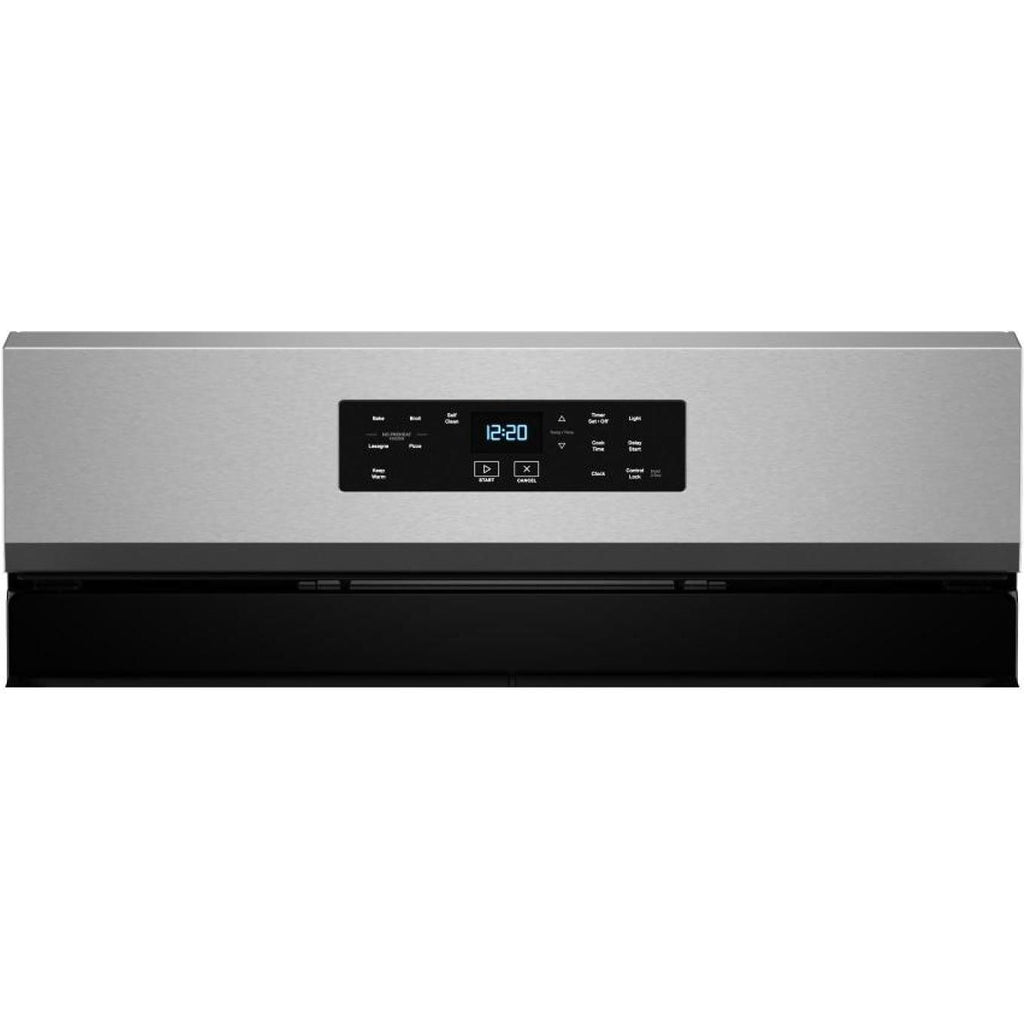

Programs
• Audible Signal
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Cook Time Indicator
• Delay Start
• Keep Warm Setting
• No Preheat - Frozen Lasagna
• No Preheat - Frozen Pizza
• Oven Light
• Sabbath Mode
• Start Time
• Stop Time
• Timer
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Cook Time Indicator
• Delay Start
• Keep Warm Setting
• No Preheat - Frozen Lasagna
• No Preheat - Frozen Pizza
• Oven Light
• Sabbath Mode
• Start Time
• Stop Time
• Timer
Features
Control Lock
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Total Gas BTUs Oven: 26,500
• Total Gas BTUs Cooktop: 44,500
• Power Outage Compatible
• Natural Gas Convertible
• LP Convertible
• Heating Element On Indicator Light
• Interior Color: Blue Graphite
• Oven Control Location: Rear Control

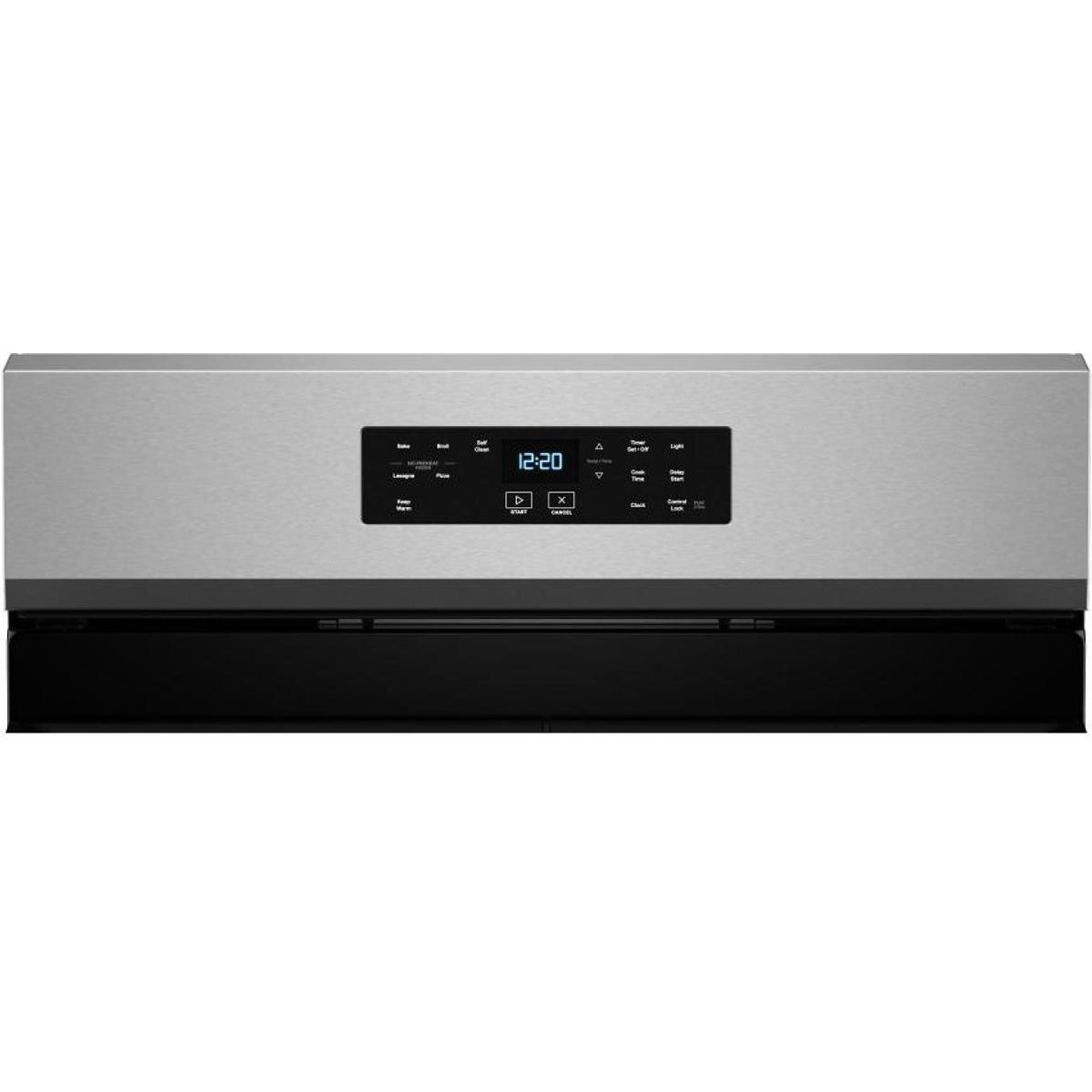

• Oven Control Type: Electronic Touch
• Oven Control Knob Type: Plastic
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Hidden Bake Element
• Cooktop Surface Material: Stainless/Porcelain Coated Steel
• Broiler Location: Top Center
• Broiler Element Power: 1,300 W Electric Broil
• Oven Rack Type: Standard (Both)
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Thermal
• Oven Door: Glass Window
• Door Removable
• Handle Type: Reach Through Handle
• Handle Material: Metal

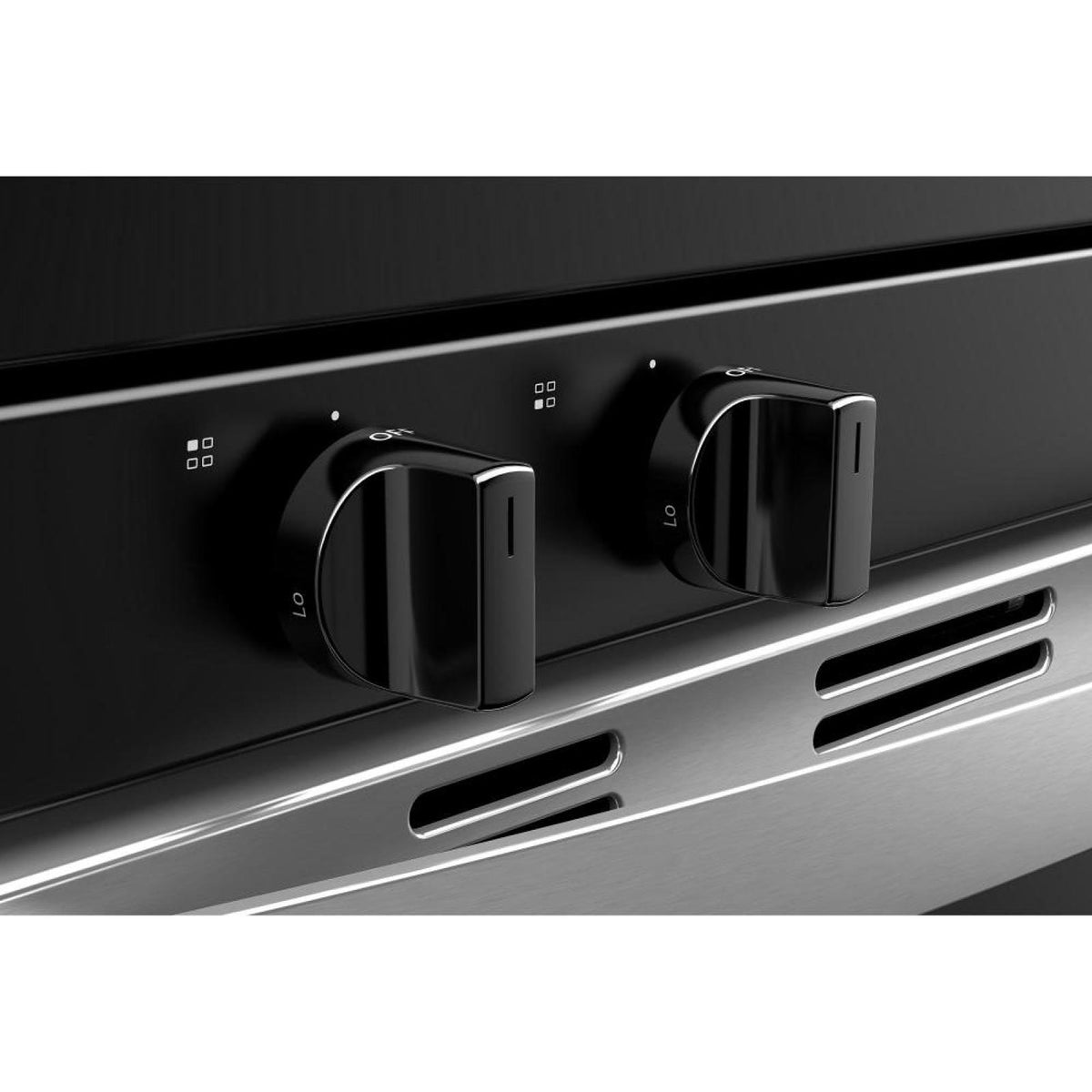

• Control Type: Knobs
• Knob Type: Plastic
• Total Gas BTUs Cooktop: 44,500
• Power Outage Compatible
• Natural Gas Convertible
• LP Convertible
• Heating Element On Indicator Light
• Interior Color: Blue Graphite
• Oven Control Location: Rear Control
• Oven Control Type: Electronic Touch
• Oven Control Knob Type: Plastic
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Hidden Bake Element
• Cooktop Surface Material: Stainless/Porcelain Coated Steel
• Broiler Location: Top Center
• Broiler Element Power: 1,300 W Electric Broil
• Oven Rack Type: Standard (Both)
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Thermal
• Oven Door: Glass Window
• Door Removable
• Handle Type: Reach Through Handle
• Handle Material: Metal
• Control Type: Knobs
• Knob Type: Plastic
Drawer Features
Storage
Yes
Electrical Information
Information
• Volts: 120 V
• Hz: 60 Hz
• Amps: 15 A
• Hz: 60 Hz
• Amps: 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• CUL
• UL
• UL
Accessories
Included
Power Cord
Optional
• 4396096RB
• W11123246
• W11123246

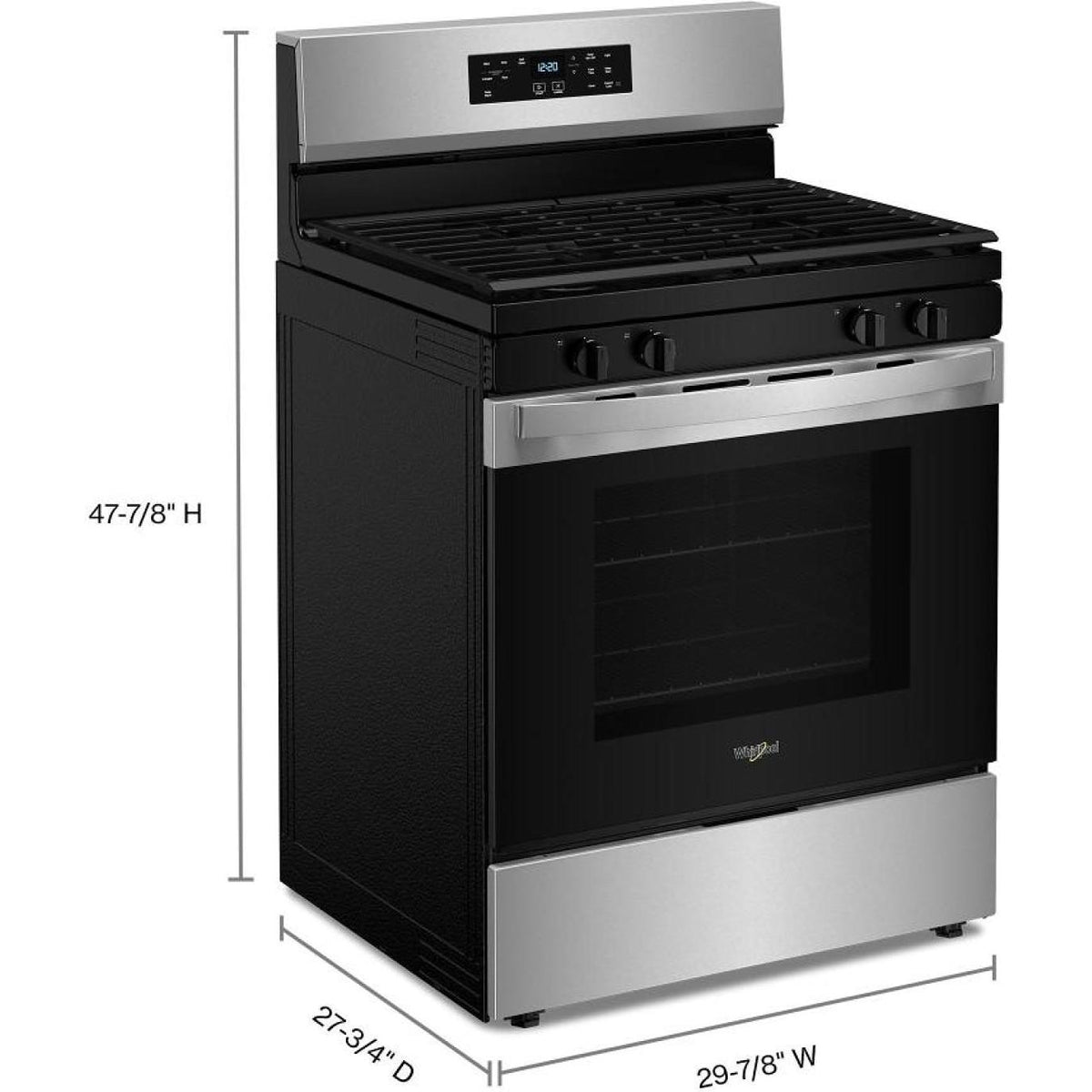

Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
47.88 inch(es) / 121.62 cm
Depth (Without Handles)
25.31 inch(es) / 64.29 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
156.99 lb(s) / 71.21 kg
Additional Dimensions
• Depth With Door Open 90 Degree: 46.69 in.
• Maximum Height: 47.88 in.
• Minimum Height: 46.88 in.
• Cutout Depth: 24.0 in.
• Cutout Height: 36.0 in.
• Cutout Width: 30.0 in.
• Maximum Height: 47.88 in.
• Minimum Height: 46.88 in.
• Cutout Depth: 24.0 in.
• Cutout Height: 36.0 in.
• Cutout Width: 30.0 in.
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
173 lb(s) / 78.47 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049683744
