DESCRIPTION

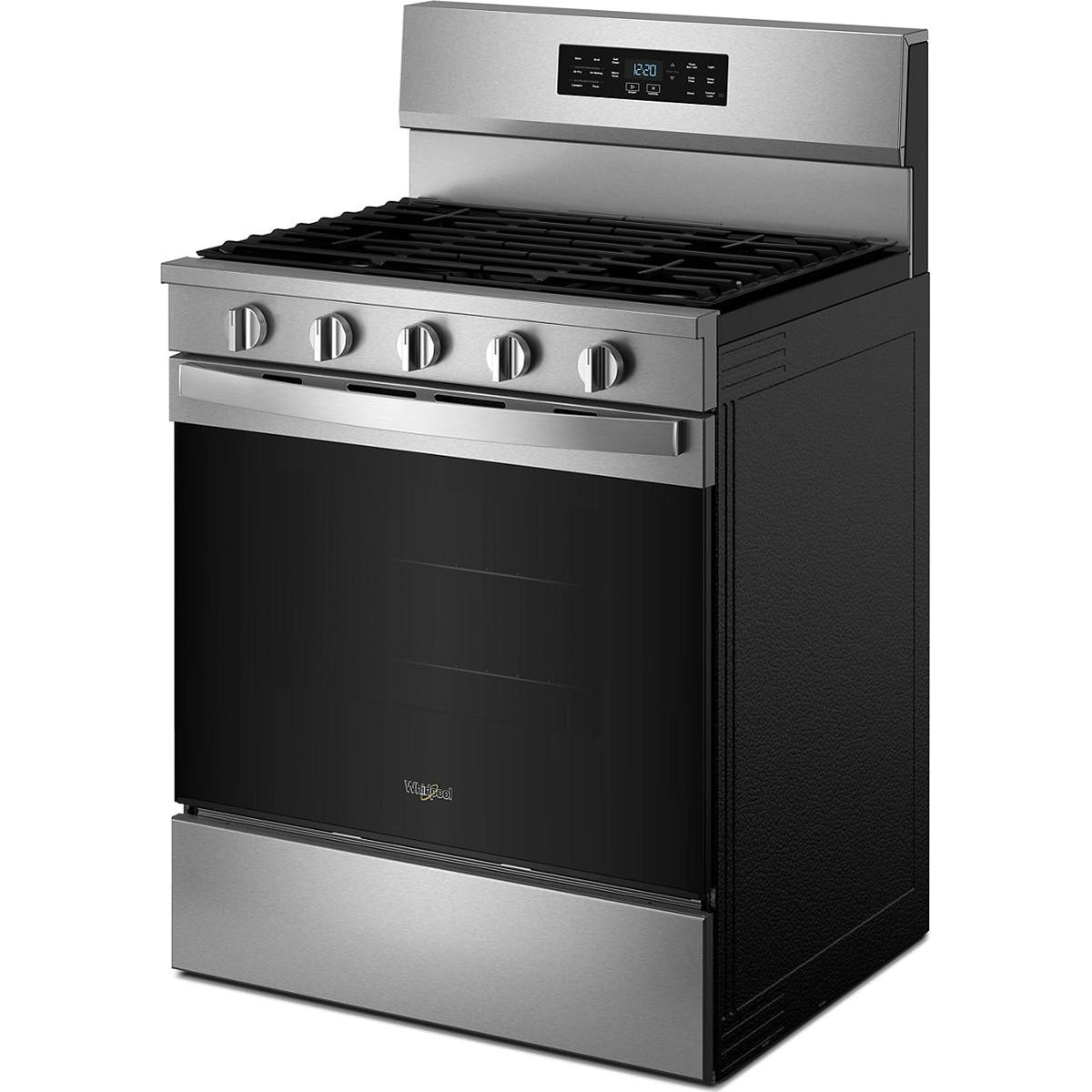

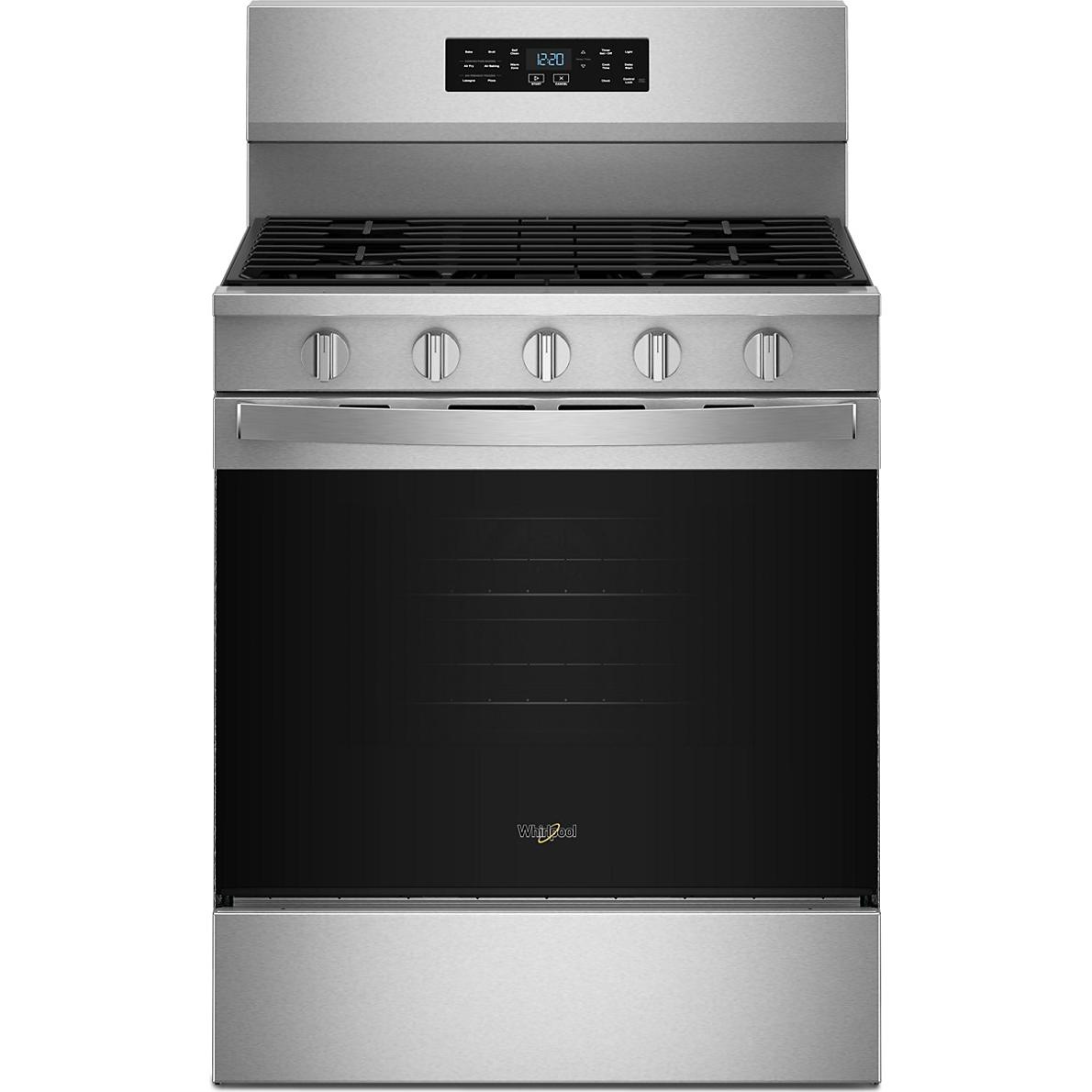

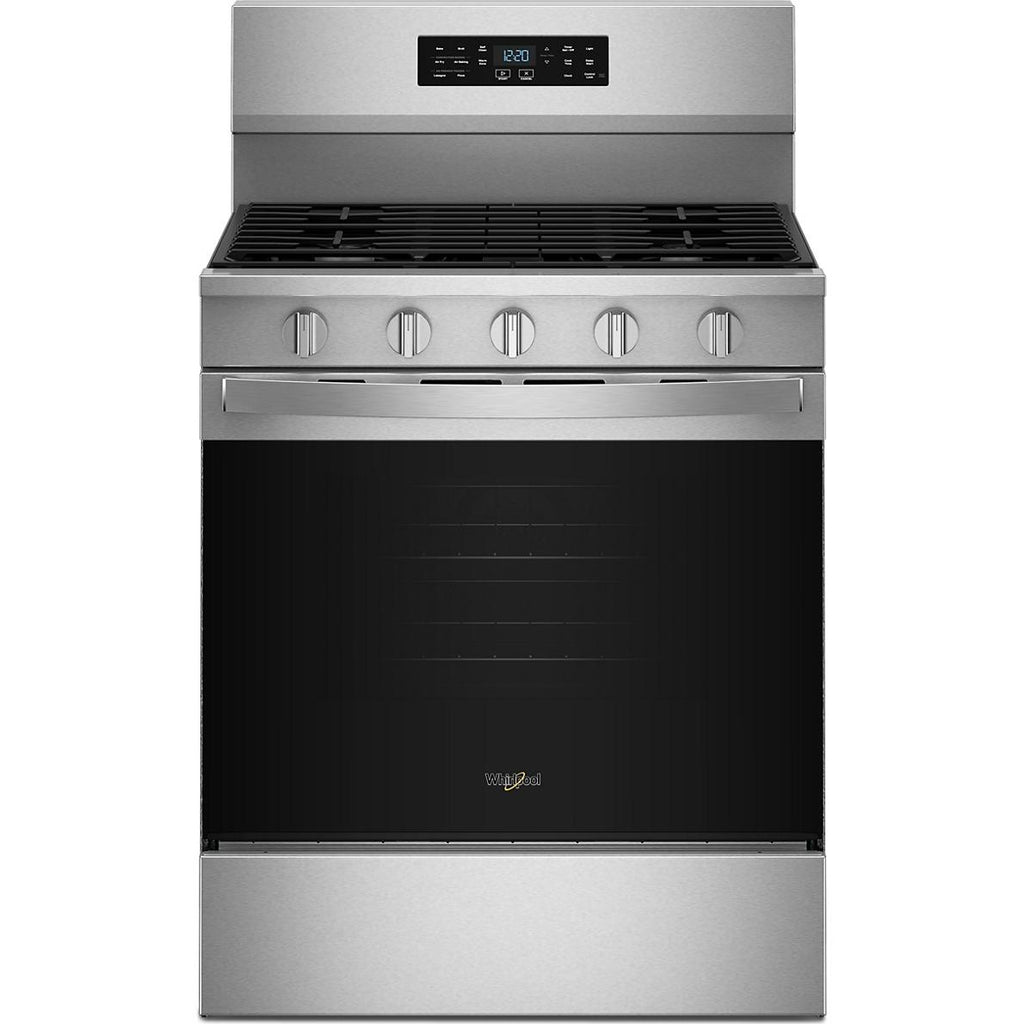

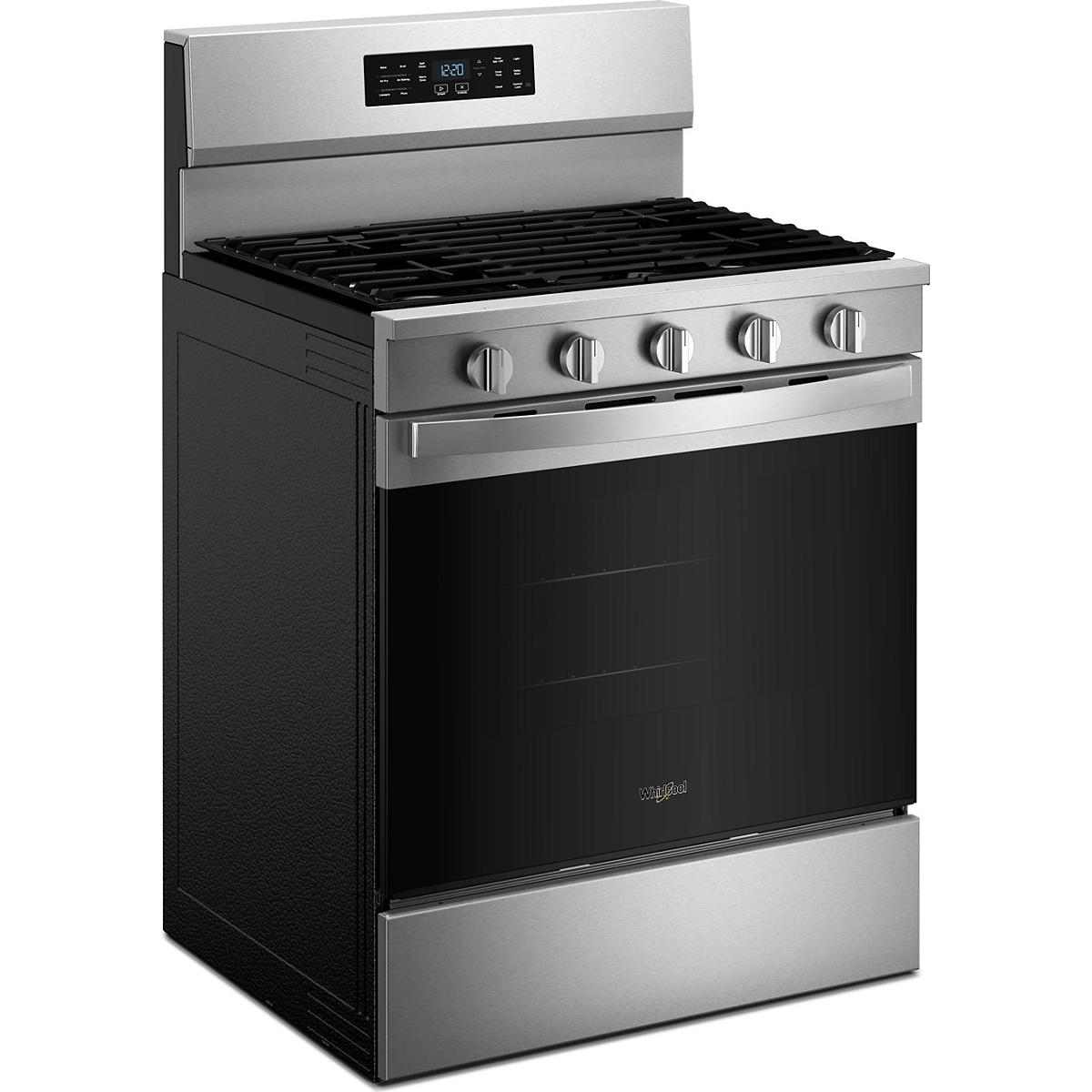

×Whirlpool 30-inch Gas Range with Air Cooking Technology. Experience the difference of Air Cooking Technology with this Whirlpool 30 inch gas range. Get crispy with our most advanced No Preheat Air Fry mode, and even results on every rack with Air Baking. Cook up all that delights, all at once with Griddle Zone, make feel good meals with a variety of Cooking Modes, and tackle your to-do list with smart features built for multitasking.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
FingerPrint Resistant Stainless Steel
Appliance Care
Self-Clean

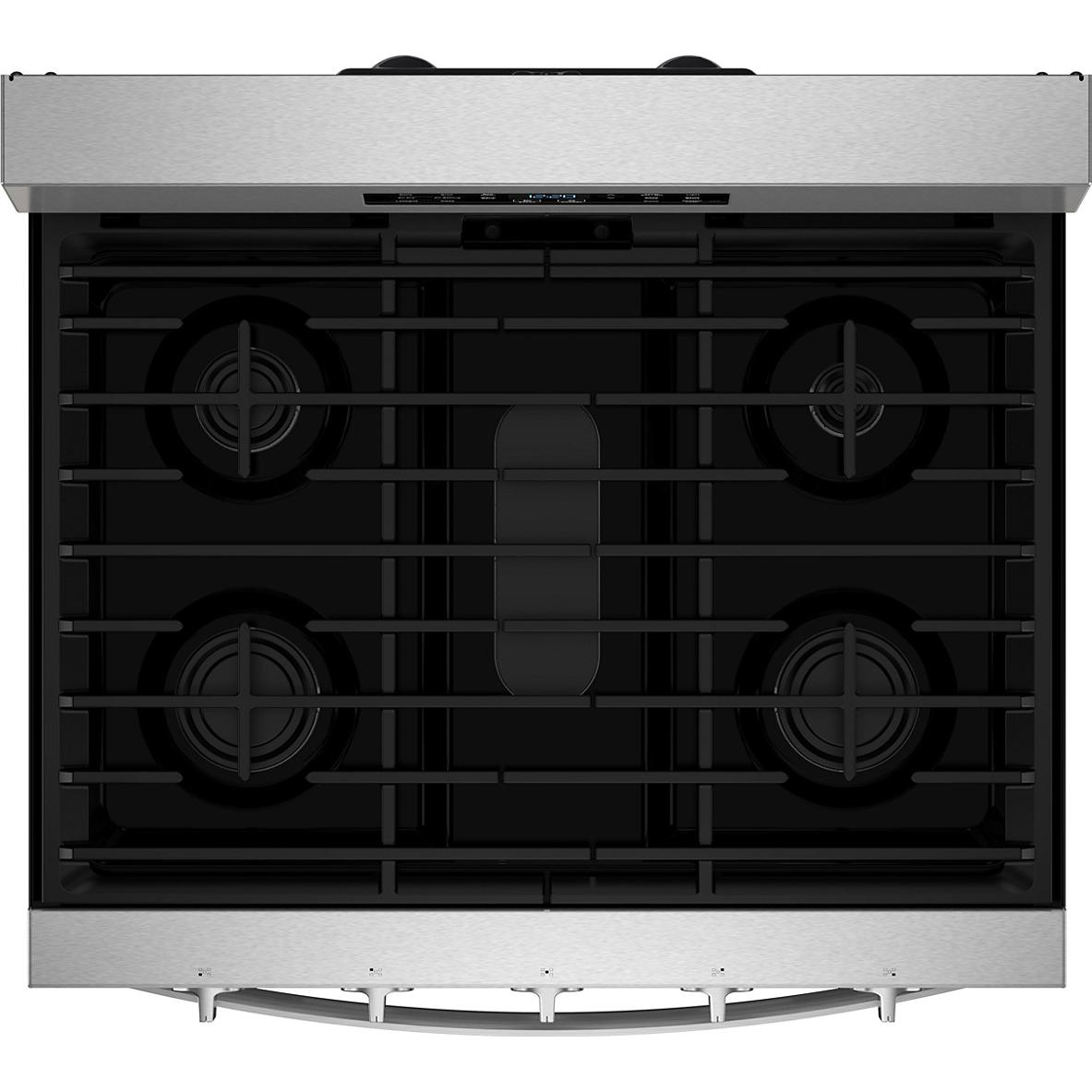

Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Rear Element Burner Power: 12000BTU
• Left Rear Element Burner Power: 10000BTU
• Left Front Element Burner Power: 18000BTU
• Right Rear Element Burner Power: 5000BTU
• Right Front Element Burner Power: 18000BTU
• Left Rear Element Burner Power: 10000BTU
• Left Front Element Burner Power: 18000BTU
• Right Rear Element Burner Power: 5000BTU
• Right Front Element Burner Power: 18000BTU
Burners
Sealed

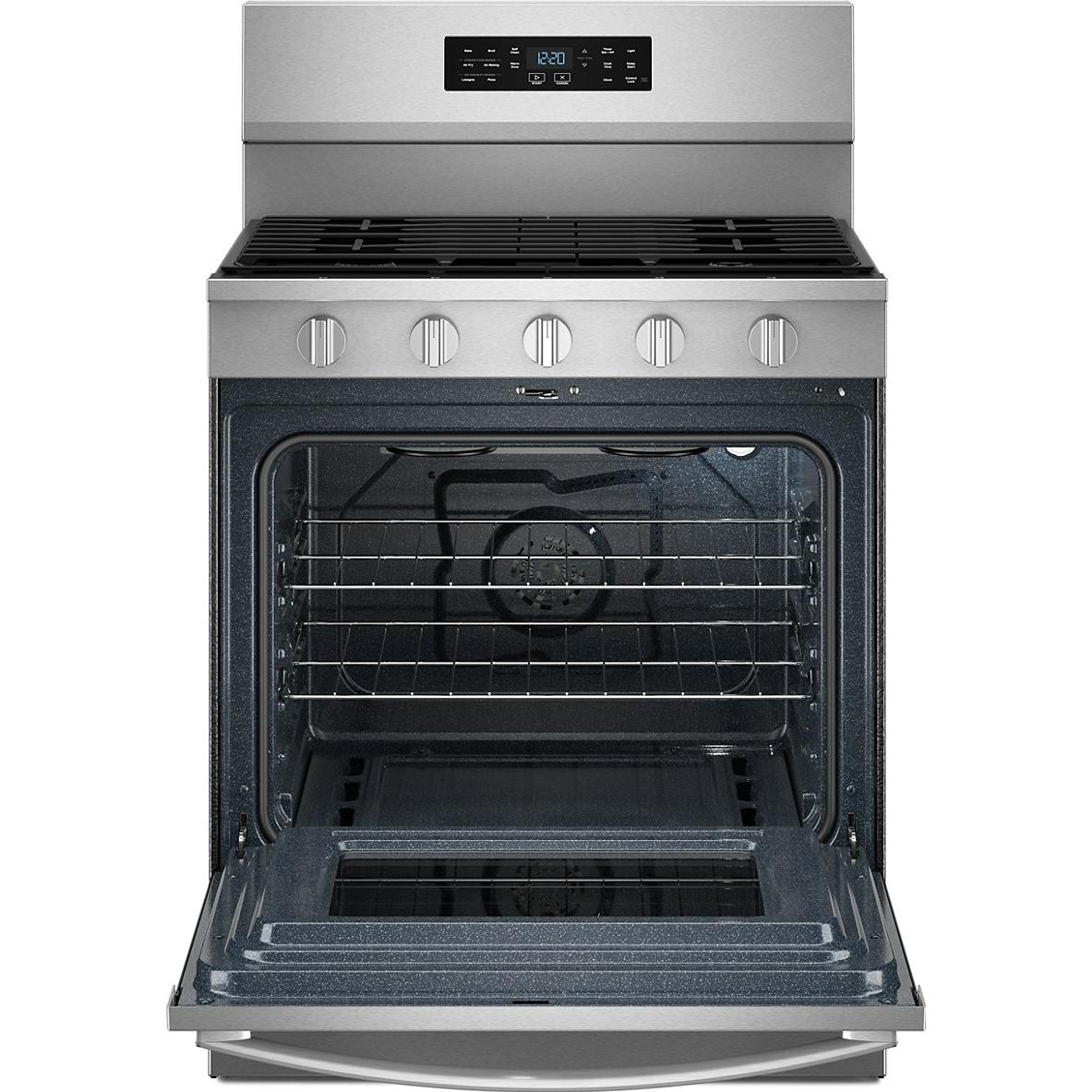

Oven
Capacity (cu. ft.)
5.0
Number of Ovens
Single
Programs
• Air Baking
• Bake
• Broil
• No Preheat Air Fry
• Bake
• Broil
• No Preheat Air Fry
Features
Technologies
Air Cooking Technology
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Rack Guide Type: Embossed
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Convection

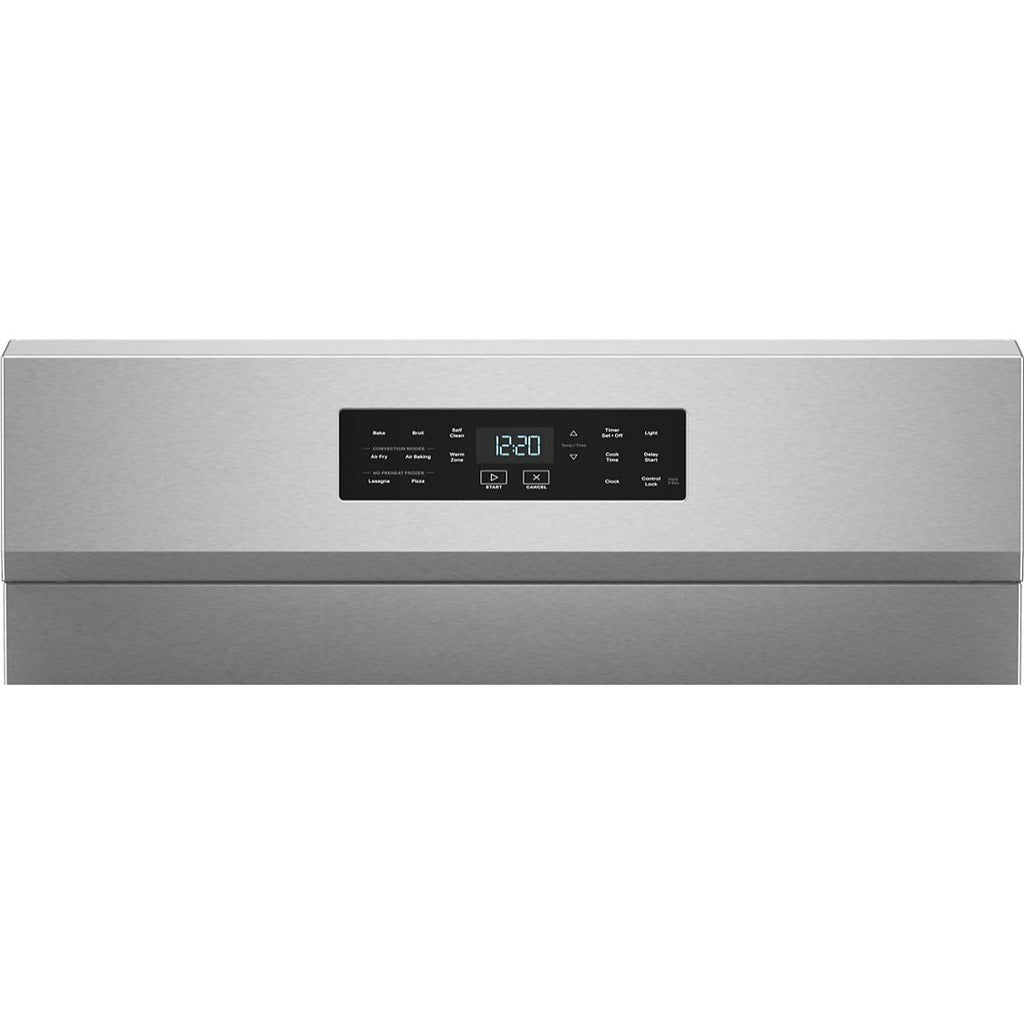

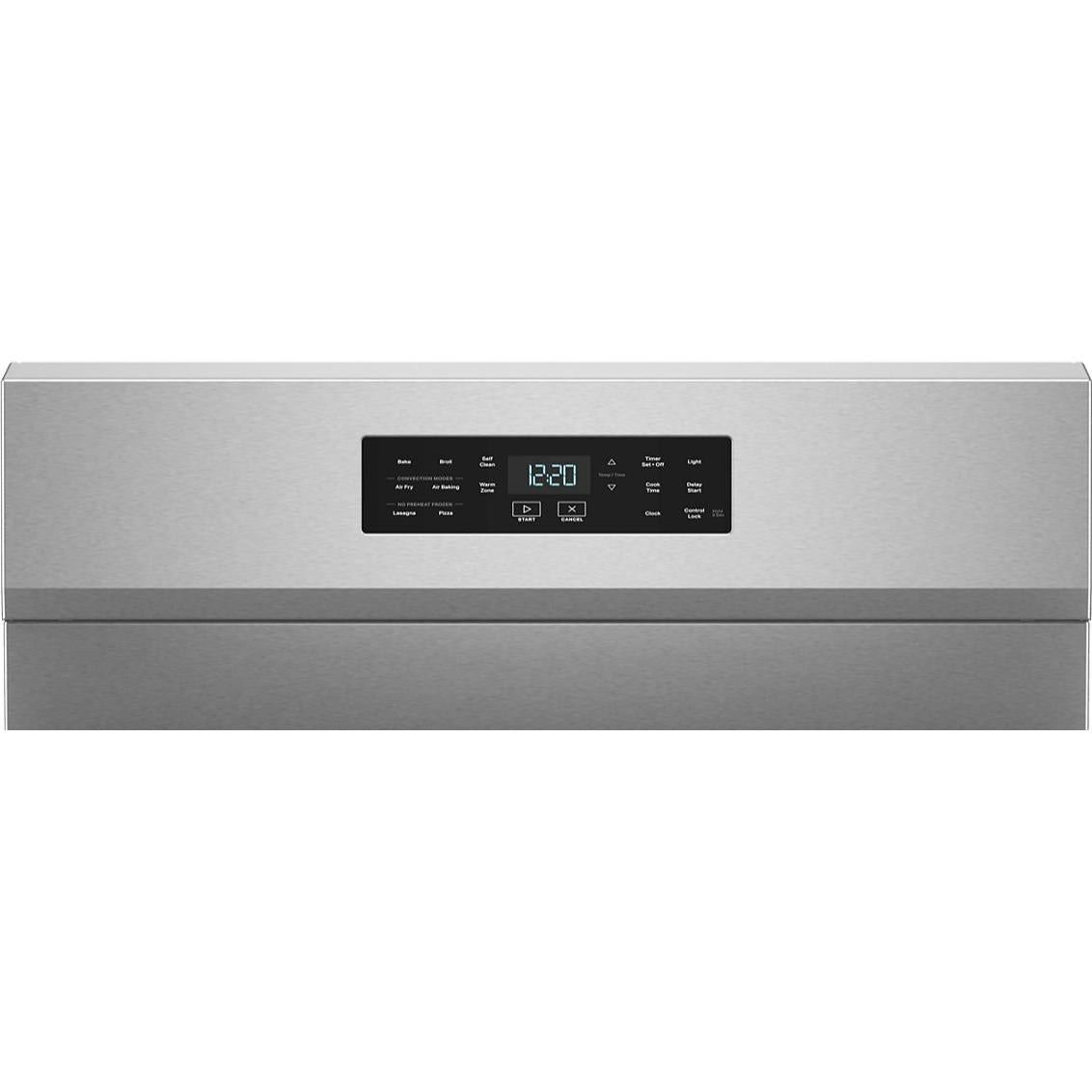

• Oven Control Type: Tap Touch
• Oven Control Location: Rear Control
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Cooktop Surface Material: Porcelain Coated Steel
• Convection Element Type: Fan
• Broiler Location: Top Center
• Broiler Element Power: 1300W Electric Broil
• Bake Element Power: 16500BTU
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Power Outage Compatible
• LP Convertible
• Number Of Grates: 3
• Ignition Type: Direct Spark Ignition
• Cooktop Control Location: Backguard
• Control Type: Knobs
• Knob Type: Plastic
• Country Of Origin: USA
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Convection
• Oven Control Type: Tap Touch
• Oven Control Location: Rear Control
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Cooktop Surface Material: Porcelain Coated Steel
• Convection Element Type: Fan
• Broiler Location: Top Center
• Broiler Element Power: 1300W Electric Broil
• Bake Element Power: 16500BTU
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Power Outage Compatible
• LP Convertible
• Number Of Grates: 3
• Ignition Type: Direct Spark Ignition
• Cooktop Control Location: Backguard
• Control Type: Knobs
• Knob Type: Plastic
• Country Of Origin: USA
Electrical Information
Information
• Volts: 120
• Amps: 15
• Hz:60
• Watts: 1400
• Amps: 15
• Hz:60
• Watts: 1400
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• UL
• CUL
• CUL
Accessories
Included
• Power Cord
• LP Conversion Kit
• LP Conversion Kit
Dimensions
Class Width
30"
Width
29.9 inch(es) / 75.95 cm
Height
46.7 inch(es) / 118.62 cm
Depth (Without Handles)
26.5 inch(es) / 67.31 cm
Depth (Including Handles)
28.2 inch(es) / 71.63 cm
Additional Dimensions
• Cutout Depth: 24 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Oven Interior Depth: 19 in
• Oven Interior Width: 24.2 in
• Depth Excluding Doors: 24-1/2 in
• Depth With Door Open 90 Degree: 46.8 in
• Maximum Height: 52-2 in
• Minimum Height: 46.7 in
• Cutout Height: 36 in
• Cutout Width: 30 in
• Oven Interior Depth: 19 in
• Oven Interior Width: 24.2 in
• Depth Excluding Doors: 24-1/2 in
• Depth With Door Open 90 Degree: 46.8 in
• Maximum Height: 52-2 in
• Minimum Height: 46.7 in
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
209.99 lb(s) / 95.25 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049940908
