DESCRIPTION
×Cook all your family’s favorites at once and clean up quick with a 5-burner cooktop that makes the most of your mealtime routine. The FlexHeat™ Triple Radiant Element provides more flexibility, and the Warm Zone Element keeps food warm while you’re finishing the rest of the meal. Then, cleanup is easy with smooth Tap Touch Controls and Control Lock Mode.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Center Rear Element: 3000/2200/1100W
• Left Front Element: 3000W/1900W
• Left Rear Element: 1200W
• Right Rear Element: 100W
• Right Front Element: 1800W
• Left Front Element: 3000W/1900W
• Left Rear Element: 1200W
• Right Rear Element: 100W
• Right Front Element: 1800W
Burner/Element Size
• Right Front Element: 8"
• Center Rear Element: 12"/9"/6"
• Right Rear Element: 6"
• Left Front Element: 10"/6"
• Left Rear Element: 6"
• Center Rear Element: 12"/9"/6"
• Right Rear Element: 6"
• Left Front Element: 10"/6"
• Left Rear Element: 6"
Elements
Smoothtop
Surface Features
Easy-Wipe Ceramic Glass Cooktop
Features
Technologies
FlexHeat™ Dual Radiant Element
Control Lock
Yes
Digital Display
Yes
Additional Information
• Hot Surface Indicator Light
• Digital Display
• Heating Element On Indicator Light
• Kitchen Timer
• Digital Display
• Heating Element On Indicator Light
• Kitchen Timer
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 40 A
• Annual Energy Usage [kWh]: 258
• 60 Hz
• 40 A
• Annual Energy Usage [kWh]: 258
Certifications and Approvals
ADA Compliant
Yes
Information
UL

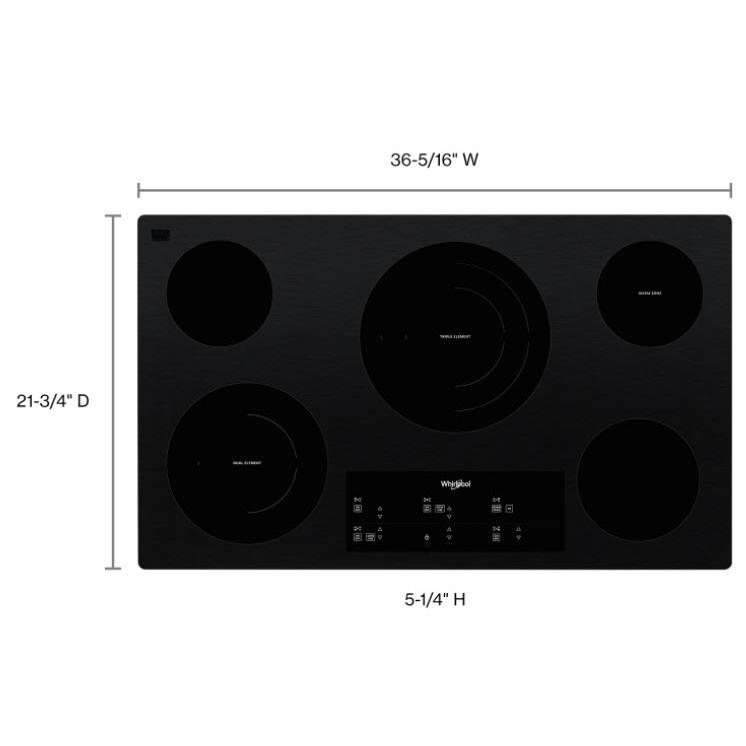

Dimensions
Class Width
36"
Width
36.31 inch(es) / 92.23 cm
Height
5.25 inch(es) / 13.34 cm
Depth
21.75 inch(es) / 55.25 cm
Weight
44 lb(s) / 19.96 kg
Shipping Dimensions
Width
40.75 inch(es) / 103.51 cm
Height
9.25 inch(es) / 23.5 cm
Depth
25 inch(es) / 63.5 cm
Weight
50 lb(s) / 22.68 kg
UPC
UPC#
883049599045
