DESCRIPTION
×A high quality refrigerator your family can trust. Whirlpool brand refrigerators have the lowest repair rate among side by side refrigerators*, so you can focus on caring for your family, not your appliance. It helps prevent freezer burn with the TruCool™ Temperature Management System that senses and adapts to the ideal temperature for food. The Humidity-Controlled Crisper keeps fruits and vegetables fresh so you always have healthy snacks on hand. New, improved LED refrigerator lighting helps keep you from losing food and letting it go to waste. With its side-by-side configuration, you can see everything in your freezer thanks to an upright design. No more digging for what you need.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Refrigerator Type
Side-by-Side
Installation Type
Freestanding
Counter-Depth
Yes
Door Hinge
Left and Right
Reversible Doors
No
Color
White
Manufacturer Color
White
Capacity
Total
20.85 cu. ft.
Refrigerator
13.66 cu. ft.
Freezer
7.19 cu. ft.
Refrigerator Features
Technologies
• TruCool™ Temperature Management System — sensor technology adjusts to the ideal food temperature
• In-Door-Ice® system
• FastFreeze™ (up to 48-hour freezer boost)
• Fast Cool (up to 6-hour refrigerator boost)
• everydrop® Water Filter A (NSF certified)
• FreshFlow™ air filter
• In-Door-Ice® system
• FastFreeze™ (up to 48-hour freezer boost)
• Fast Cool (up to 6-hour refrigerator boost)
• everydrop® Water Filter A (NSF certified)
• FreshFlow™ air filter
Control Lock
Yes
Door Alarm
Yes
Electronic Sensors
Yes
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Gallon Door
Yes
Additional Information

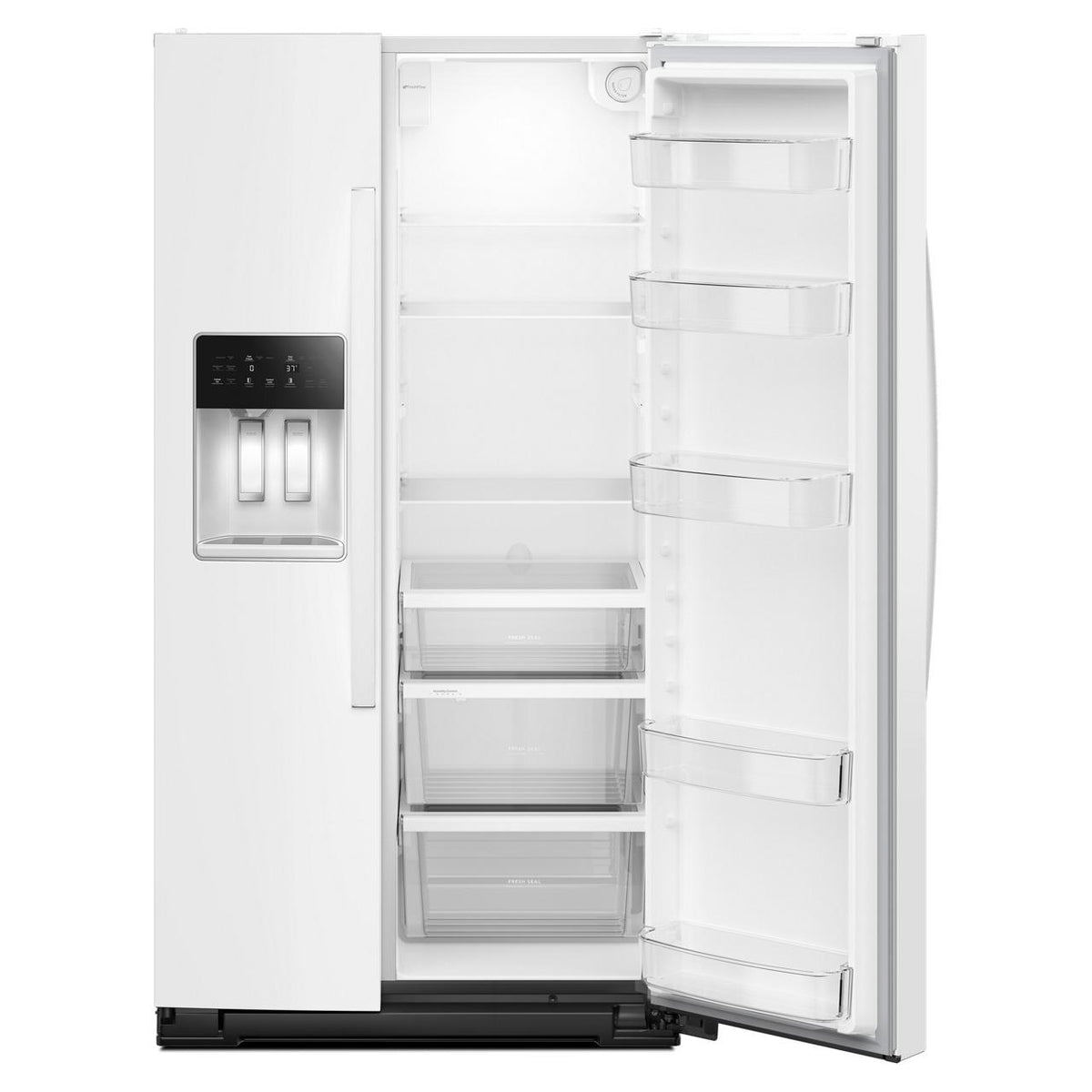

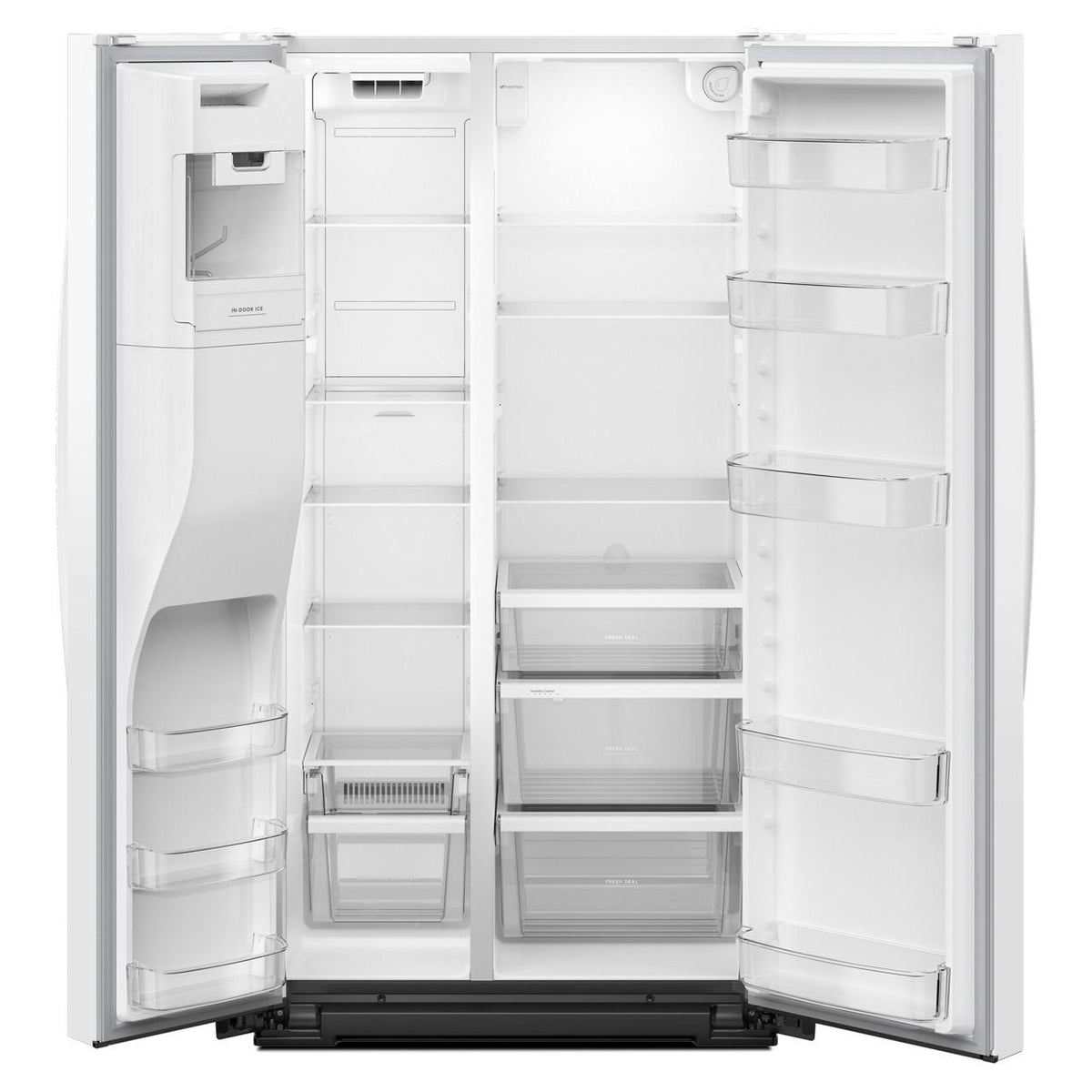

• Conventional Shelves: 1 Fixed Full-Width Glass, 3 Adjustable Full-Width Glass
• Humidity-Controlled Crispers: 1 Full-Width
• Liner Finish: White Opaque
• Number of Doors: 2
• Number of Interior Shelves: 4
• Refrigerator Door Bins: 2 Adjustable Gallon, 2 Adjustable Two-Liter
• Refrigerator Lighting: LED
• Supplementary Containers: Utility Compartment
• Humidity-Controlled Crispers: 1 Full-Width
• Liner Finish: White Opaque
• Number of Doors: 2
• Number of Interior Shelves: 4
• Refrigerator Door Bins: 2 Adjustable Gallon, 2 Adjustable Two-Liter
• Refrigerator Lighting: LED
• Supplementary Containers: Utility Compartment
Freezer Features
Additional Freezer Information
• Freezer Door Bins: 3 Adjustable Full-Width
• Freezer Door Type: Swing
• Freezer Drawer/Basket: 1 Full-Width Lower Plastic
• Freezer Lighting: LED
• Freezer Number of Shelves: 4
• Freezer Shelves: 1 Fixed Full-Width Glass, 3 Adjustable Full-Width Glass
• Freezer Door Type: Swing
• Freezer Drawer/Basket: 1 Full-Width Lower Plastic
• Freezer Lighting: LED
• Freezer Number of Shelves: 4
• Freezer Shelves: 1 Fixed Full-Width Glass, 3 Adjustable Full-Width Glass
Ice and Water
Ice System
Exterior
Water System
Exterior
Filtration
Yes
Filtration Indicator
Yes

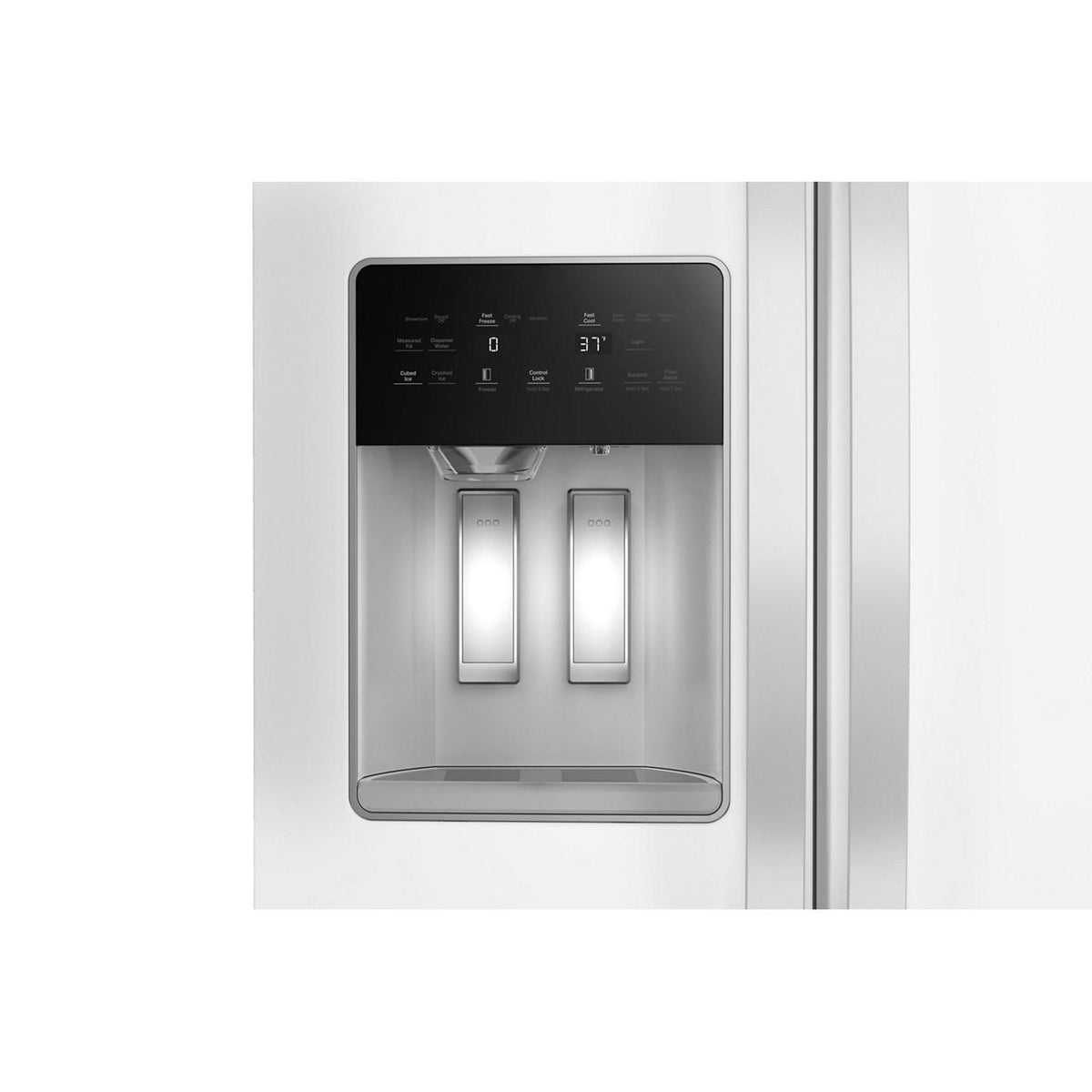

Dispenser Features
• Icemaker: Factory Installed
• Icemaker Location: Freezer
• Types of Ice: Crushed/Cubed
• Air Filter Indicator/Reset: Yes
• Fresh Flow Air Filter Included: Yes
• Water Filter Indicator/Reset: Yes
• Water Filter Location: Interior
• Water Filter Part Number: EDRARXD1
• Icemaker Location: Freezer
• Types of Ice: Crushed/Cubed
• Air Filter Indicator/Reset: Yes
• Fresh Flow Air Filter Included: Yes
• Water Filter Indicator/Reset: Yes
• Water Filter Location: Interior
• Water Filter Part Number: EDRARXD1
Electrical Information
Information
• Voltage: 115 V
• Frequency: 60 Hz
• Amperage: 15 A
• Frequency: 60 Hz
• Amperage: 15 A
Certifications and Approvals
ADA Compliant
Yes
Additional Information
• ADA Height and Side Reach Compliant
• UL Certified
• UL Certified
Accessories
Included
• everydrop® Water Filter A (part number EDRARXD1)
• FreshFlow™ air filter
• FreshFlow™ air filter
Optional
• Prep & Store Bins, set of 5 (part number W11675428)
• everydrop® replacement water filters
• everydrop® replacement water filters

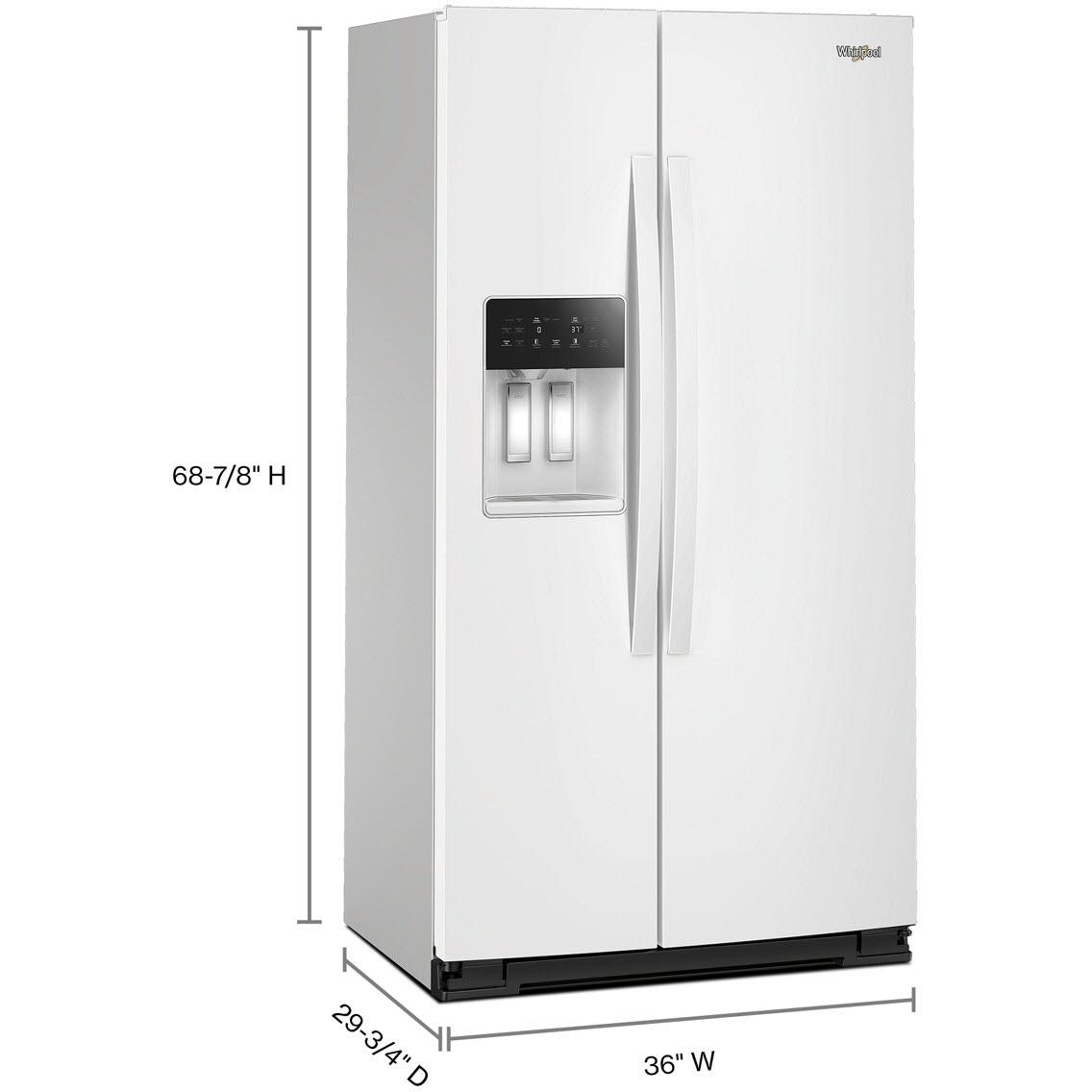

Dimensions
Class Width
35" to 37.9"
Class Height
65" - 70"
Width
35.5 inch(es) / 90.17 cm
Height (With Hinge)
69.18 inch(es) / 175.73 cm
Depth (Without Handles)
28.38 inch(es) / 72.09 cm
Depth (With Handles)
30.38 inch(es) / 77.17 cm
Weight
247.2 lb(s) / 112.13 kg
Additional Dimensions
• Cabinet Width: 90.17 cm / 35.5 in
• Cutout Depth: 77.15 cm / 30.375 in
• Cutout Height: 178.44 cm / 70.25 in
• Cutout Width: 92.71 cm / 36.5 in
• Depth: 72.07 cm / 28.375 in
• Depth Closed Excluding Handles: 72.07 cm / 28.375 in
• Depth Closed Including Handles: 77.15 cm / 30.375 in
• Depth Excluding Doors: 60.64 cm / 23.875 in
• Depth With Door Open 90 Degrees: 116.20 cm / 45.75 in
• Height: 175.90 cm / 69.25 in
• Height To Top Of Cabinet: 175.26 cm / 69 in
• Height To Top Of Door Hinge: 175.73 cm / 69.187 in
• Height To Top Of Door Trim: 175.90 cm / 69.25 in
• Maximum Height: 175.26 cm / 69 in
• Minimum Height: 174.94 cm / 68.875 in
• Width: 90.17 cm / 35.5 in
• Cutout Depth: 77.15 cm / 30.375 in
• Cutout Height: 178.44 cm / 70.25 in
• Cutout Width: 92.71 cm / 36.5 in
• Depth: 72.07 cm / 28.375 in
• Depth Closed Excluding Handles: 72.07 cm / 28.375 in
• Depth Closed Including Handles: 77.15 cm / 30.375 in
• Depth Excluding Doors: 60.64 cm / 23.875 in
• Depth With Door Open 90 Degrees: 116.20 cm / 45.75 in
• Height: 175.90 cm / 69.25 in
• Height To Top Of Cabinet: 175.26 cm / 69 in
• Height To Top Of Door Hinge: 175.73 cm / 69.187 in
• Height To Top Of Door Trim: 175.90 cm / 69.25 in
• Maximum Height: 175.26 cm / 69 in
• Minimum Height: 174.94 cm / 68.875 in
• Width: 90.17 cm / 35.5 in
Shipping Dimensions
Weight
257.19 lb(s) / 116.66 kg
Warranty
Warranty
• Warranty: 1 year from date of delivery, parts and labor included, on the entire appliance.
• Warranty Years 2–5: Parts and labor included on the sealed refrigeration system only (compressor, evaporator, condenser, dryer, and connecting tubing).
• Warranty Years 2–5: Parts and labor included on the sealed refrigeration system only (compressor, evaporator, condenser, dryer, and connecting tubing).
